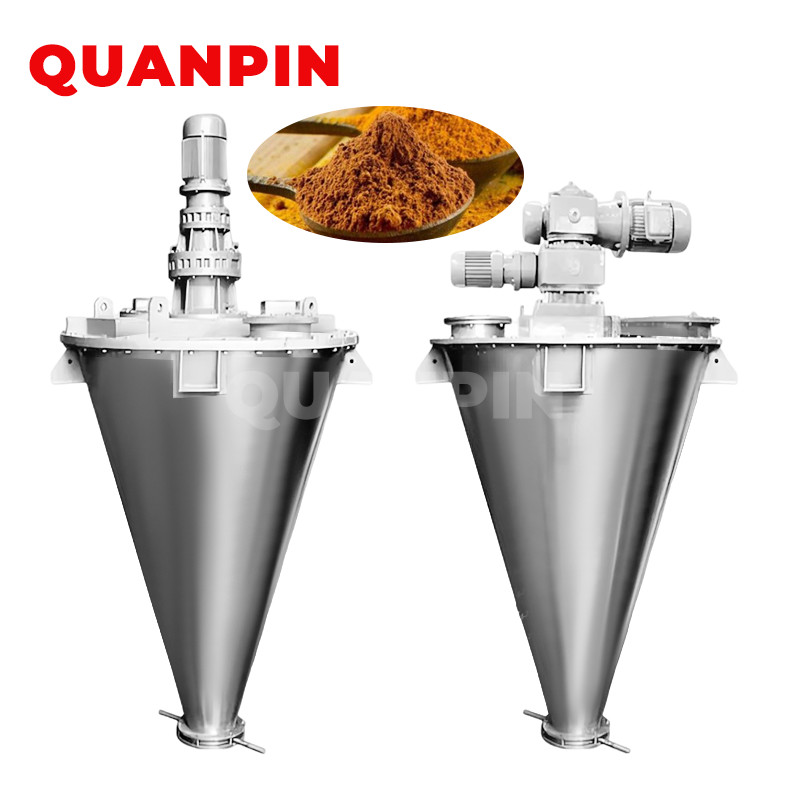

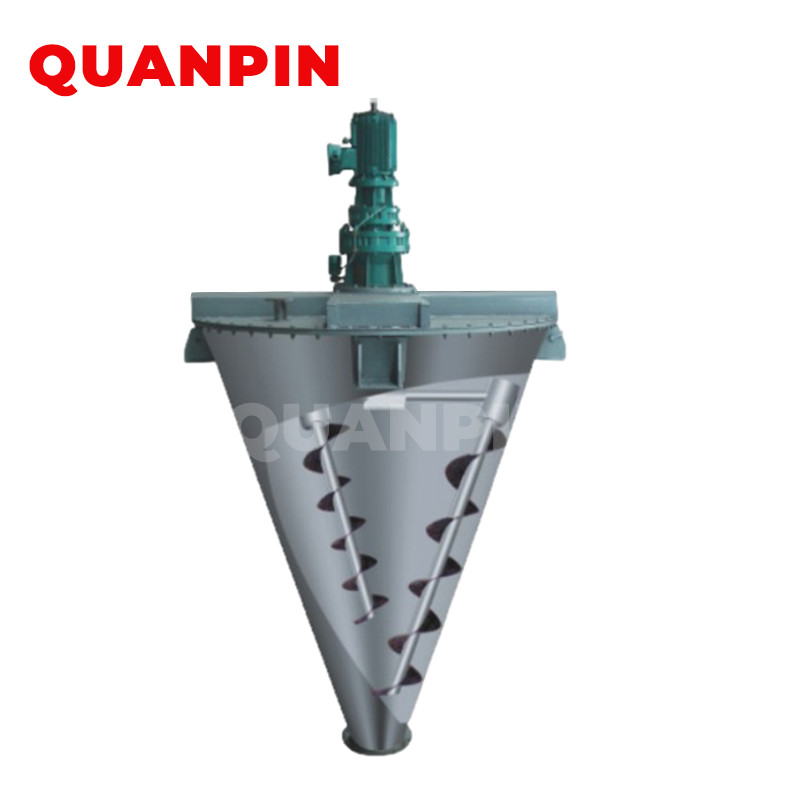

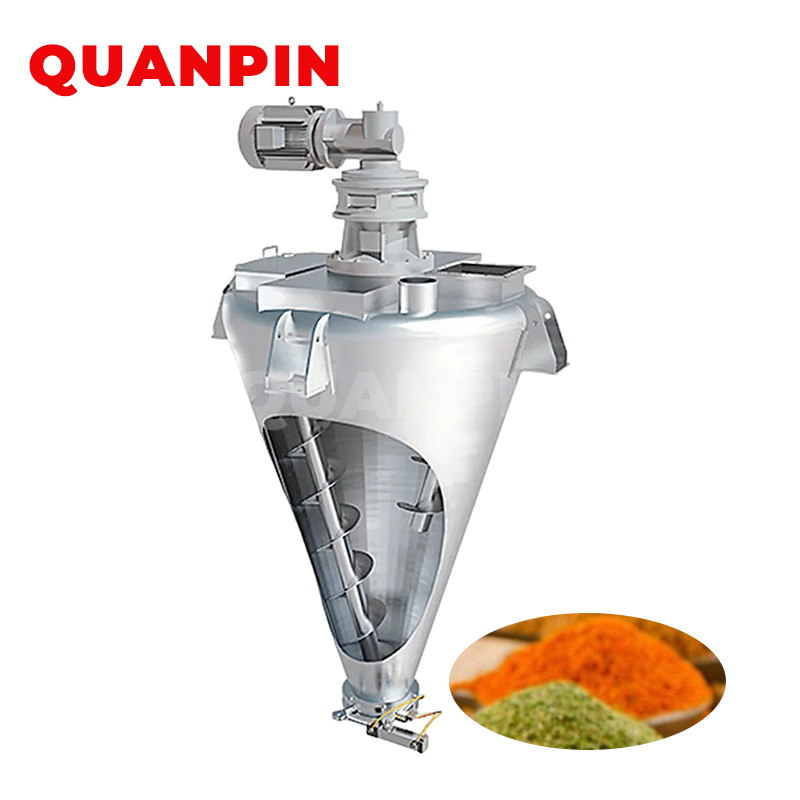

DSH Series Double Screw Conical Mixer (double screw cone mixer) (Nauter Mixer)
DSH Series Double Screw Conical Mixer (double screw cone mixer) (Nauter Mixer)
DSH Series Double Screw Conical Mixer (double screw cone mixer) (Nauter Mixer) is new type high-efficiency and precise mixer, it's suitable for mixing the powder state materiais in the pharmaceutical, chemical, food, instant soluble and other industries.
The machine structure is reasonable and its external appearance is beautiful. All the sections of contacting the materials use the stainless steel.
Video
Features
1. The machin is new type high-efficiency and precise mixer, it's suitable for mixing the powder state materials in the pharmaceutical, chemical, food, instant soluble and other industries.
2. The machine structure is reasonable and its external appearance is beautiful. All the sections of contacting the materials use the stainless steel.
3. The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on.
Remarks: If customer has any special requirements, please special order.
Optional Choices
1. For the feeding system, you can choose vacuum feeder or negative feeding system or manual type.
2. For the cleaning, you can choose simple type (spray gun or nozzle), also you can choose WIP or SIP.
3. For the control system, there are push button or HMI+PLC for your choice.
Technical Parameter
| Spec | DSH0.3 | DSH0.5 | DSH1 | DSH2 | DSH4 | DSH6 | DSH10 |
| Total volume(m3) | 0.3 | 0.5 | 1 | 2 | 4 | 6 | 10 |
| Feeding rate | 0.4--0.6 | ||||||
| Diameter of materials to be mixed (um) | 40-3000 | ||||||
| Operation condition | Ambient temperature, normal pressure, sealed to dust | ||||||
| Production capacity(kg)p=1g/cm3 | 180 | 300 | 600 | 1200 | 2400 | 3600 | 6000 |
| Power(kw) | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 20.7 | 30.7 |
| Time of mixing (min) | 4--10 (Special material to be determined by trial) | ||||||
| Weight (kg) | 500 | 1000 | 1200 | 1500 | 2800 | 3500 | 4500 |
