GFG Series High Efficiency Fluid Bed Dryer (High Efficiency Fluidizing Dryer)
GFG Series High Efficiency Fluid Bed Dryer（High Efficiency Fluidizing Dryer)

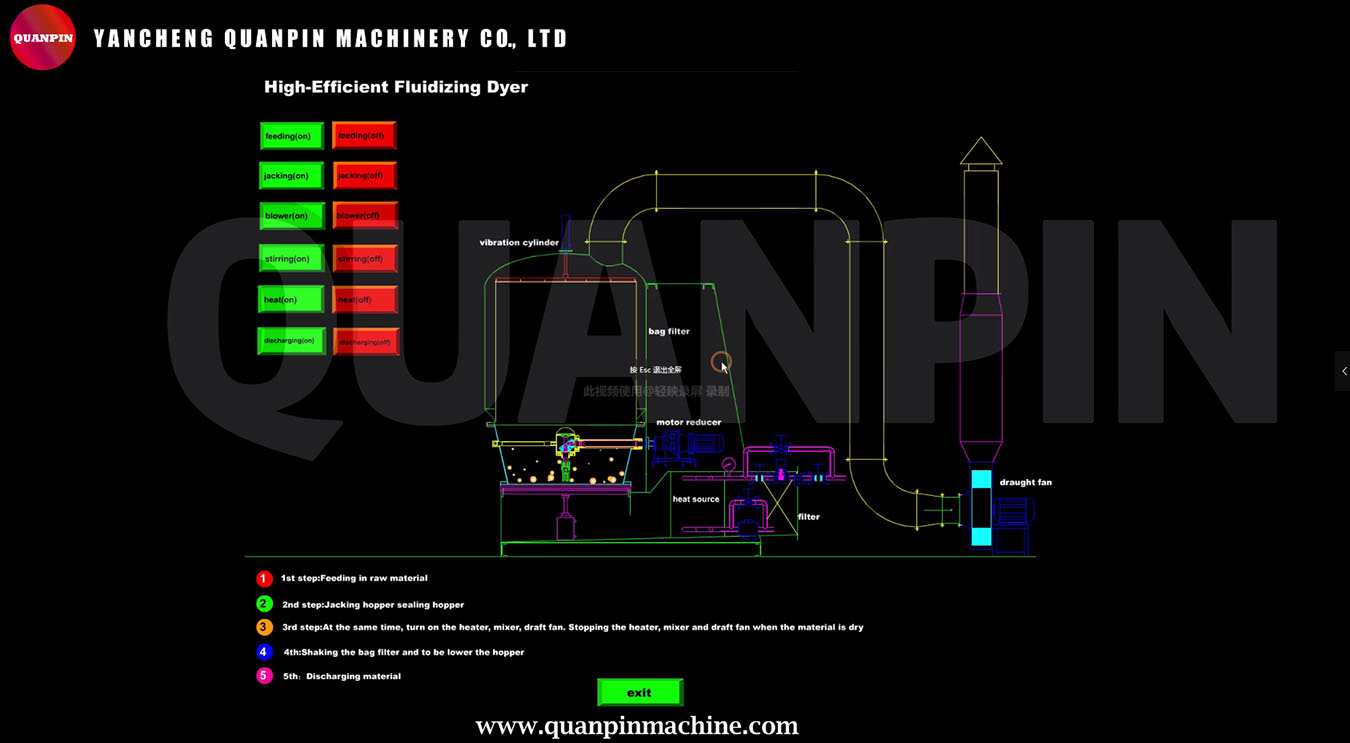

Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Video
Features
1. The structure of fluidization bed is of round so as to avoid dead corner.
2. Inside the hopper there is a stirring device in order to avoid agglomeration of raw material and forming canal of flow.
3. The granule is discharged through the method of turning over. It is very convenient and full. The discharged system can be designed as request too.
4. It is operated at he conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity with the requirements of GMP.
5. The drying speed is fast and the temperature is uniform. The drying time is 20-30 minutes normally.
Technical Parameter
| Model | GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | GFG-300 | GFG-500 | |
| Batch charging(kg) | 60 | 100 | 120 | 150 | 200 | 300 | 500 | |
| Blower | Air flow(m3/h) | 2361 | 3488 | 3488 | 4901 | 6032 | 7800 | 10800 |
| Air pressure(mm)(H2O) | 494 | 533 | 533 | 679 | 787 | 950 | 950 | |
| Power(kw) | 7.5 | 11 | 11 | 15 | 22 | 30 | 45 | |
| Agitating power(kw) | 0.4 | 0.55 | 0.55 | 1.1 | 1.1 | 1.1 | 1.5 | |
| Agitating speed(rpm) | 11 | |||||||
| Steam consumption(kg/h) | 141 | 170 | 170 | 240 | 282 | 366 | 451 | |
| Operating time(min) | ~15-30 (According to the material) | |||||||
| Height(mm) | Square | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 |
| Round | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 | |

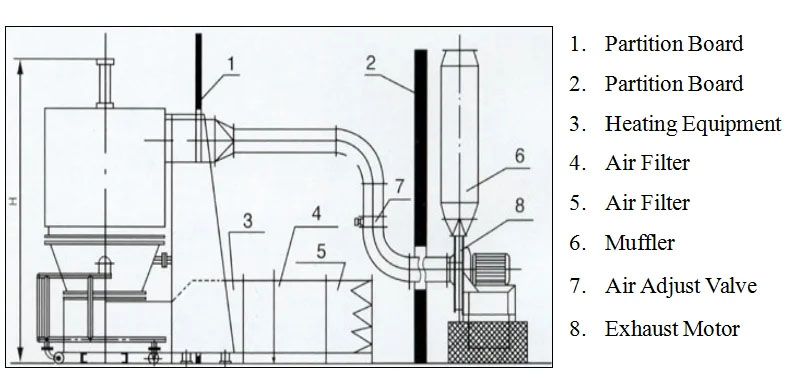

Machine Installation
Application
1. Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on.
2. Large granules, small block, viscous block granular materials.
3. The materials such as Konjak, polyacry lamide and so on, which will have the volume changed during drying.
