GHL Series High Speed Mixer Granulator
GHL Series High Speed Mixer Granulator
GHL Series High speed Mixing Granulator is equipped with a closed container with blending tools driven from above or below has long been applied by the pharmaceutical industry. The mechanical effect of the blending tools – irrespective of whether in batches or continuous operation – creates a denser granulate than the fluidized bed process.
Originally, the granulation liquid was poured into the product. Today, an improved dosed distribution using a spray nozzle is preferred in order to obtain a more even granulate.
The granules are distinguished by a compact structure and high bulk density. They have good flow characteristics and can be optimally pressed. For various applications in pharmaceuticals and related industries.
Video
Principle

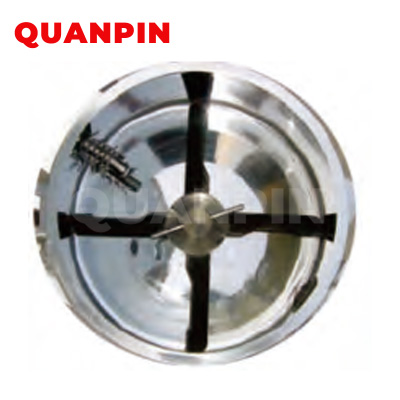

In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cutted into uniform wet-particles by the side high-speed smashed paddles.
Purpose And Features
Purpose:
The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.
Feature and simple introduce:
It is the structure of horizontal cylinder (cone).
Full sealed driving shaft, to use water when cleaning.
Fluidization granulation, the finished granules are similar to roundness with good liquidity.
Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
Whole operation has the strict safety precautions.

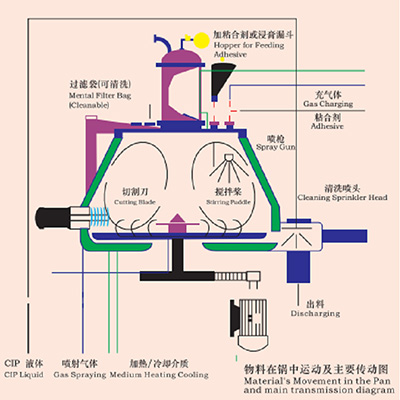

Schematic Structure
Technical Parameter
| Name | Specification | |||||||
| 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 | |
| Capacity (L) | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Output (kg/batch) | 3 | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Mixing speed (r.p.m) | 300/600 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Mixing power (kw) | 1.5/2.2 | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| Cutting speed (r.p.m) | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
| Cutting power (kw) | 0.85/1.1 | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| Amount of compressed air(m³/min) | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |

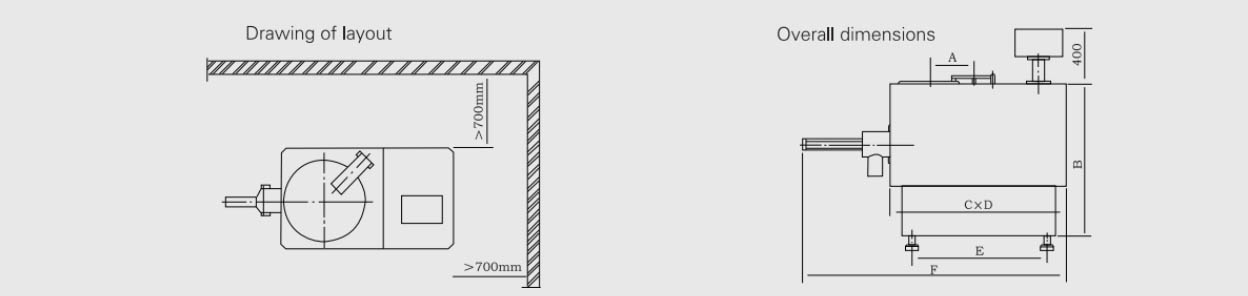

| Type | A | B | C×D | E | F |
| 10 | 270 | 750 | 1000×650 | 745 | 1350 |
| 50 | 320 | 950 | 1250×800 | 970 | 1650 |
| 150 | 420 | 1000 | 1350×800 | 1050 | 1750 |
| 200 | 500 | 1100 | 1650×940 | 1450 | 2050 |
| 250 | 500 | 1160 | 1650×940 | 1400 | 2260 |
| 300 | 550 | 1200 | 1700×1000 | 1400 | 2310 |
| 400 | 670 | 1300 | 1860×1100 | 1550 | 2410 |
| 600 | 750 | 1500 | 2000×1230 | 1750 | 2610 |
Applications
The pelletizing machine is the latest developed a new generation of wet mixing granulator, it is at home and abroad on the basis of the existing pellet mill uses a lot of the latest technology, reasonable GHL machine structure, easy to use, fully functional, fully embodies the perfect combination of technology and equipment. Powder material with a binder in a cylindrical container and mixed thoroughly by the bottom step mixing paddle into moist soft material and then cut by the side of the high-speed smash paddle uniformly wet granules.
