High Salt Wastewater Dryer
Video
In the chemical production process of biopharmaceuticals, organophosphorus pesticides, petrochemical refining, heavy metal smelting and other chemical production processes will produce a large number of high-salt wastewater, which often contain a variety of toxic substances and ultra-high pH, for such high COD, high-salt wastewater, effective measures must be taken to deal with. Otherwise, it will cause serious environmental pollution. Therefore, for the chemical production of a variety of high salt wastewater, according to the different sources of high salt wastewater, the nature of the classification and selection of the optimal process.
Yancheng City Quanpin mechanical drying can achieve a technological breakthrough in the treatment of such high COD, high salt wastewater; high salt wastewater drying experiments with high salt wastewater drying machine, successfully tested a variety of miscellaneous salt wastewater, to solve the process of high salt wastewater disposal in the field of the pain point.

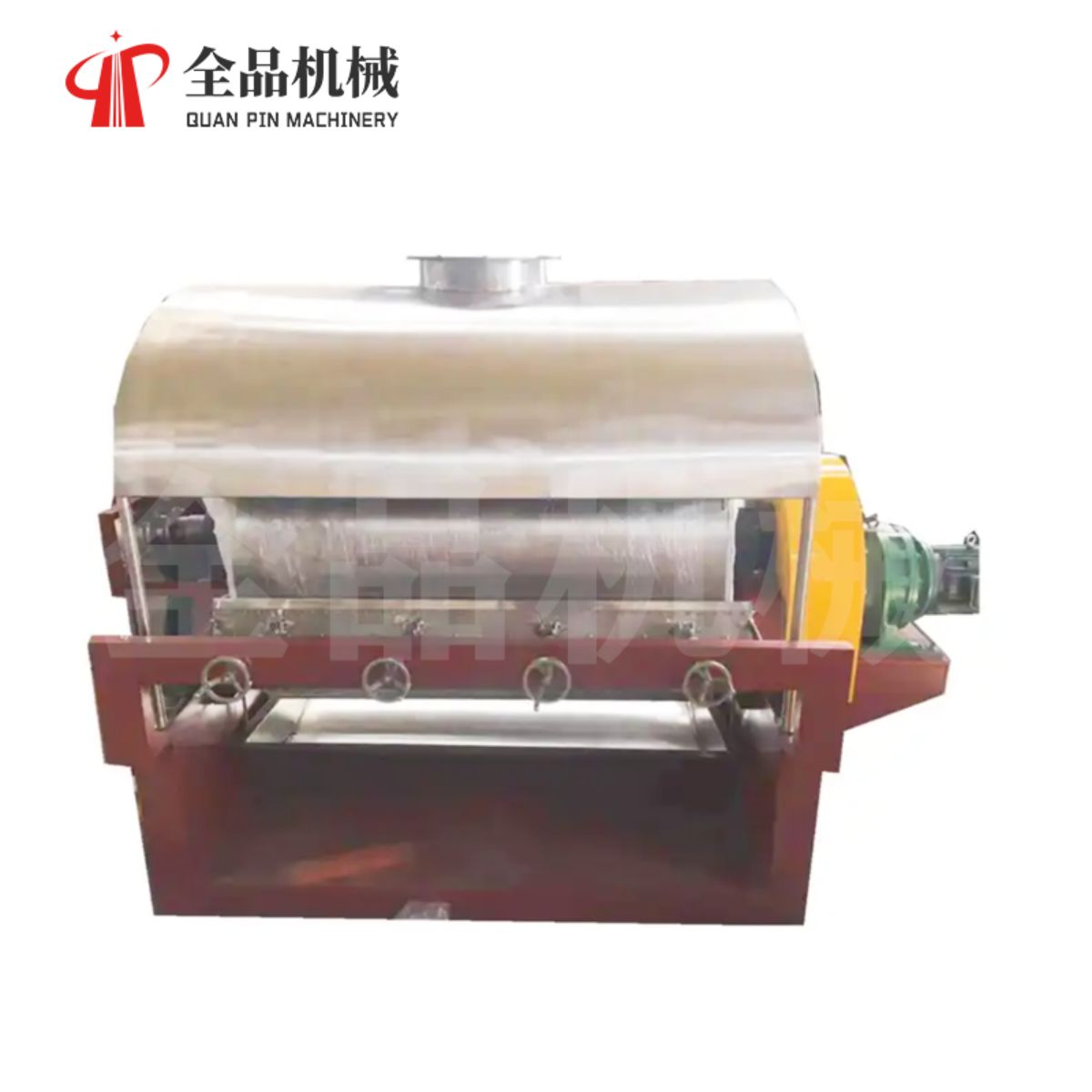

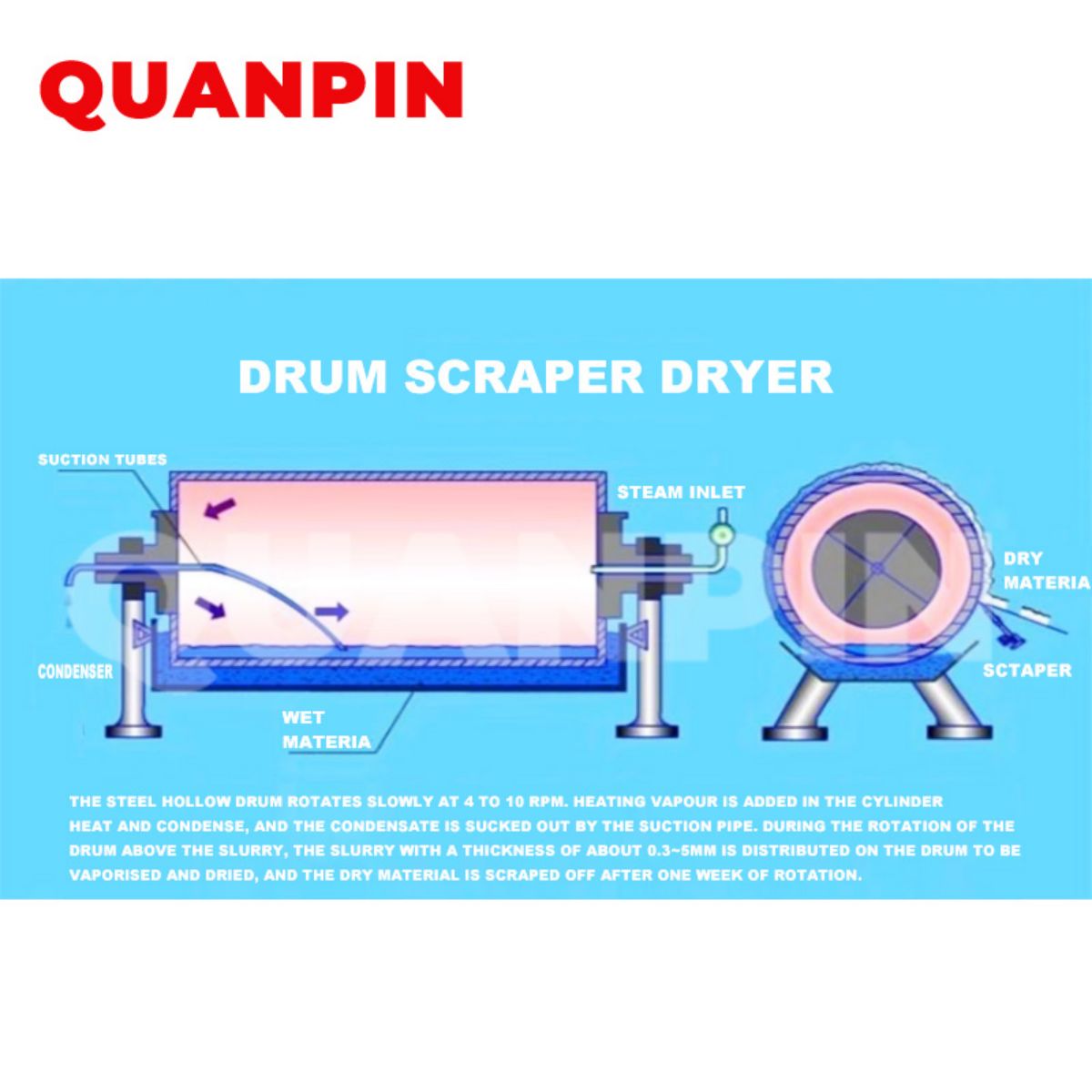

High-salt wastewater dryer is a kind of internal heat conduction type rotating drying equipment, wet materials in the outer wall of the drum to obtain the heat transferred in the form of thermal conductivity, moisture removal, to achieve the required wet water content. Heat is transferred from the inner wall to the outer wall of the cylinder and then through the material film, which has high thermal efficiency and can be operated continuously, so it is widely used in drying liquid materials or strip materials, and it is more suitable for pasty and viscous materials. High-salt wastewater dryer is a kind of internal heat conduction type rotating drying equipment independently researched and developed by Yancheng City Quanpin mechanical drying, wet materials in the outer wall of the drum to get to the thermal conductivity of the heat transfer, water removal, to achieve the required wet water content. Heat is transmitted from the inner wall to the outer wall of the cylinder, and then through the material film, with high thermal efficiency and continuous operation, so it is widely used in drying liquid materials or strip materials.
Yancheng city full product machinery drying high salt wastewater dryer is more suitable for equipment paste and viscous materials.
Features
(1) High thermal efficiency:
The heat supplied in the cylinder, in addition to a small amount of heat radiation and the end cover of the cylinder body part of the heat loss, most of the heat is used in the wet part of the gasification, the thermal efficiency can be as high as 70~80%.
(2) Drying rate is large:
The heat and mass transfer process of the wet material film on the cylinder wall, from inside to outside, in the same direction, the temperature gradient is large, so that the material film surface to maintain a high evaporation intensity, generally up to 30~70kg.H₂O/m².h.
(3) The drying quality of the product is stable:
Roller heating mode is easy to control, the temperature inside the cylinder and the heat transfer rate of the wall can be kept relatively stable, so that the material film can be dried in a stable state of heat transfer, and the quality of the product can be guaranteed.
(4) Wide range of application:
The liquid phase material using drum drying, must have mobility, adhesion and thermal stability of the form of the material can be a solution, non-homogeneous suspension, emulsion, sol-gel and so on. For pulp, textiles, celluloid and other band materials can also be used.
(5) the production capacity of a single machine:
Restricted by the size of the cylinder General drum dryer drying area, should not be too large. The drying area of a single cylinder, rarely more than 12 m2. The same specifications of the equipment, the ability to deal with the liquid material, but also by the nature of the liquid material, moisture content control, film thickness, drum speed and other factors, the magnitude of the change is large, generally in the range of 50 to 2000kg / h. The drying area of a single cylinder, seldom more than 12m2.
(6) heating medium is simple:
Commonly used saturated water vapour, pressure range of 2~6kgf/com2, rarely more than 8kgf/cm2. For some of the requirements of drying materials at low temperatures, hot water can be taken as a heat medium: to dry materials at higher temperatures, can also be used as a heat medium or high-boiling organic as a heat medium.
Structural Form

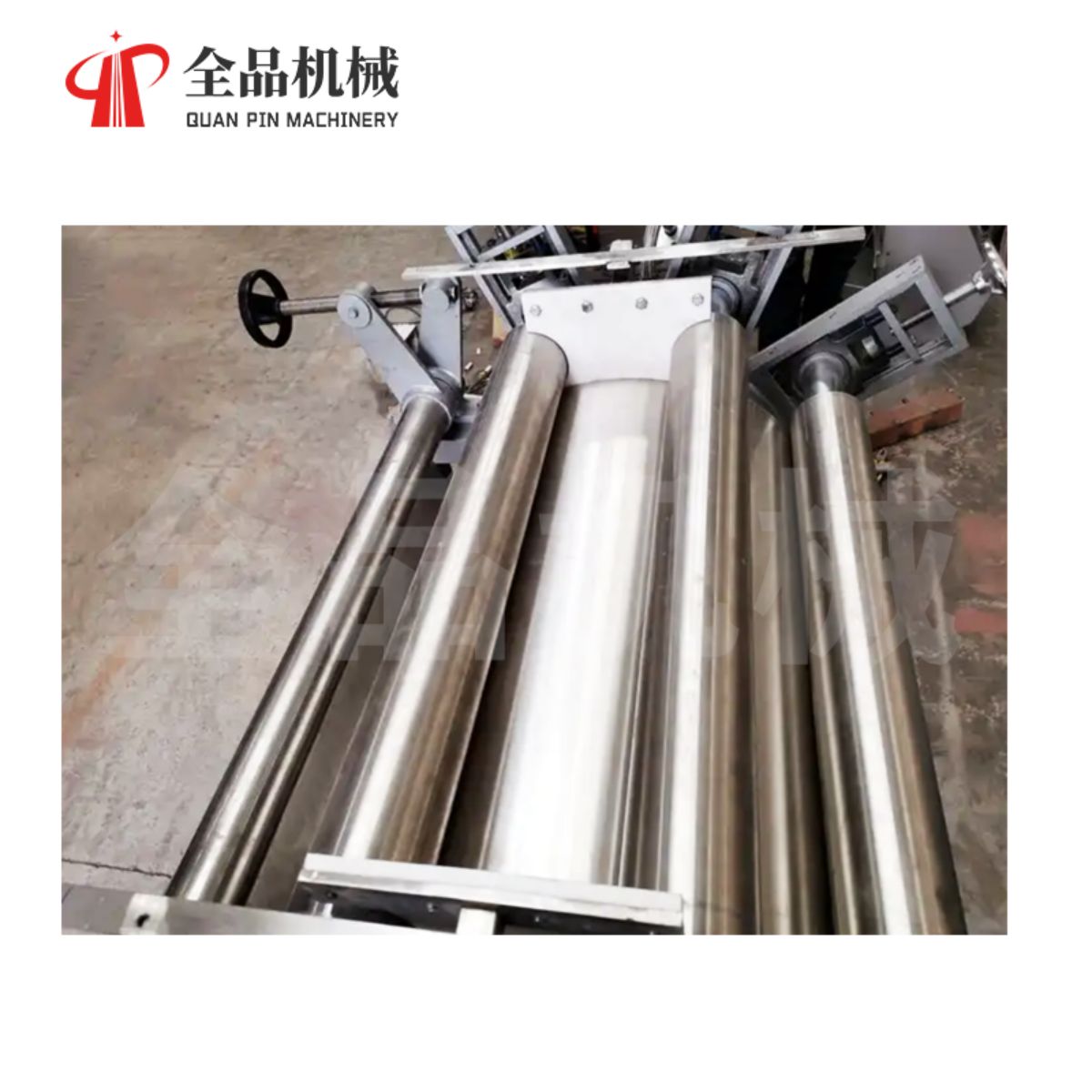

Double cylinder dryer. In addition, it can also be divided into two forms of normal pressure and reduced pressure according to the operating pressure.
Technical Parameters
Note: If customers need, we can design and manufacture upper feeding double drum dryer for customers.
Installation
Double drum scraper dryer installation system according to the general layout of the installation, the ground should be flat, the steam pipe inlet should be installed at the pressure gauge and safety valve, the steam inlet flange is firmly connected.
Areas of use
The high salt wastewater dryer of Quanpin Drying is mainly used to deal with liquid materials, which can be heated and dried by steam, hot water or hot oil, and cooled and kneaded by cold water: according to different material properties and technological requirements, it can be used in the way of adding materials such as immersion type, spraying type and grinding auxiliary type.
Adaptation of materials
High salt wastewater dryer all-in-one machine is suitable for drying liquid or more viscous materials in chemical industry, water purification agent, copper sulfate, animal gum, plant gum, dye yeast, antimicrobial agent, lactose, starch slurry, sodium nitrite, dyes, distillation waste liquid, sulfide blue, penicillin dregs, wastewater extracted proteins, metallurgy and other industries.
Maintenance
(1) Regularly check the rotation flexibility of rotating parts, whether there is any jamming phenomenon. Sprocket and other parts should be regularly added to the grease, regular correction of pressure gauges and other measuring devices error. The triangle belt drive parts should be replaced in time if there is serious wear and tear.
2）Maintenance of motor and reducer is shown in the instruction manual of motor and reducer.
Adjust Components During Testing
(1) After the installation of high salt wastewater dryer, we should carry out test run experiment firstly to start the main motor and observe the main drum turning correctly.
(2) Observe the main drum and the rotation of the transmission components are flexible, observe the steam import and export is connected, whether the pressure gauge in the working pressure range.
3）Start the motor, the main drum running smoothly, temperature rises after adding materials to adjust the motor speed and materials in the drum on the film uniformity to control the final moisture content of the material.
4）Start the motor, output dry finished materials, according to the amount of dry finished products to adjust the motor speed.
