HLD Series Hopper Mixer (Bin mixer)
HLD Series Hopper Mixer (Bin mixer)
Through years of studying, comparing and absorbing both domestic and foreign machines, we develop our own design of HLD series hopper lifting machine.

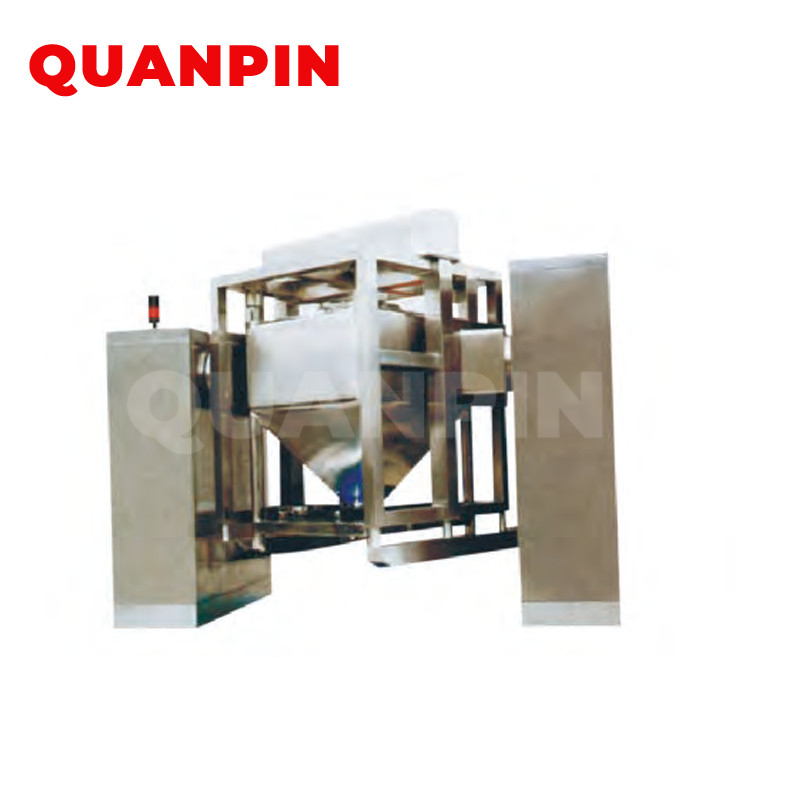

The main structure feature of the mixer is: The mixing body (material vessel) and the rotating axis form a angle of 30°. When the material is rotating, the material also makes tangent movement along the wall of the vessel. The function of these to movements makes all points of material moves in complicated ways, changes their positions all the time, so to have very high mixing efficiency.
Video
Features
1. This machine is our widely absorbing, digesting foreign advanced technology, combined with the new type conditions of successful research and development. Reasonable structure, stable performance, convenient operation, the machine without dead angle, no exposed screws. The rotary body (mixing hopper) into a 30 degree angle with the axis of rotation, mixed material in the hopper with rotary turning, along the bucket wall tangential movement, have a strong turnover and high-speed tangential movement, so as to achieve the best effect of mixing. Using PLC automatic control, and set the infrared safety device and anti misoperation device discharge valve, ensure safety in production. Through the process of material can be different in the same container, do not require frequent feeder, feeding program. Control of dust and cross pollution effectively, reduce the loss of material, hierarchical control material, optimize the production process, in full compliance with the GMP requirement of pharmaceutical production.
2. The structure is reasonable; adopt double hoisting devices, motor rotation, flexible coupler. The performance is stable, the upkeep and maintenance and simpler, and there's no problem of leakage.
3. Adopt programmed control system, technical parameters setting system, machine stops system for safety, automatic accurate positioning system, operation, and automatic record printing system, that fully meet processing equipment of pharmaceutical companies. Fully automatic production is realized, and the operation is very simple.
4. To ensure the quality of the machine, we adopt high quality out purchased parts for this machine.

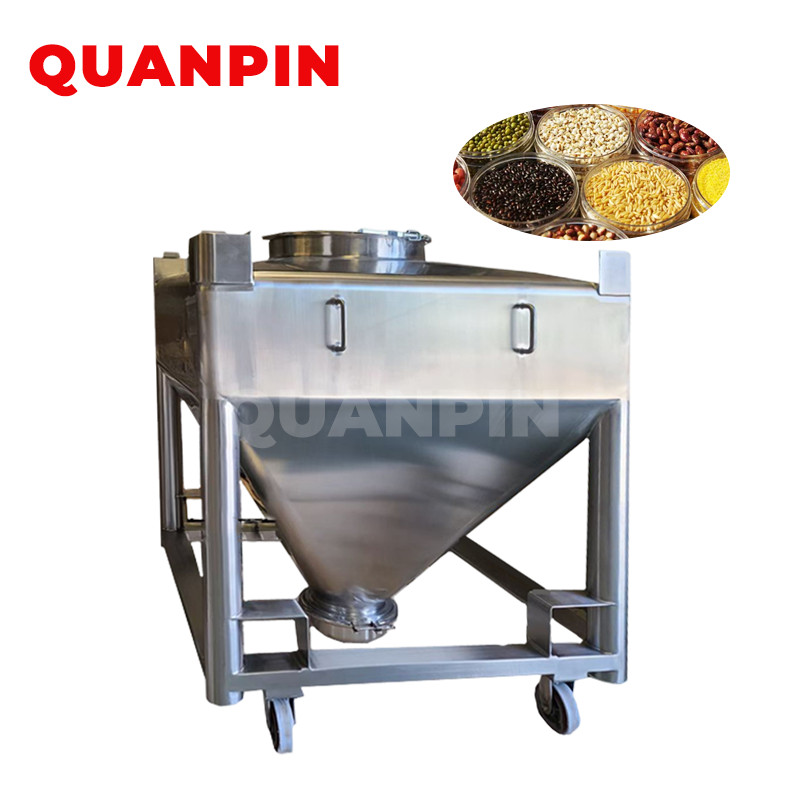

5. Equipped with fine manufactured hopper that fully meet the requirements of GMP, no residues of discharge, and it's easy for cleaning or washing
6. We supply series product for material conveying. It forms advanced process together with the hopper mixing machine.
7. For the feeding system for this mixer , it can choose vacuum feeding or negative feeding or others.
Remarks: If customer has any special requirements, please special order.
Technical Parameter
| Spec parameter | HLD-800 | HLD1000 | HLD1200 | HLD-1500 | HLD2000 | HLD3000~6000 |
| A | 2900 | 3100 | 3175 | 3350 | 3770 | |
| B | 2550 | 2600 | 2700 | 2850 | 3300 | |
| C | 1850 | 1900 | 1950 | 2100 | 2650 | |
| 1600 | 1650 | 1700 | 1800 | 2050 | ||
| E | 700 | 700 | 700 | 700 | 700 | |
| F | 1000 | 1200 | 1200 | 1200 | 1200 | |
| G | 1500 | 1500 | 1500 | 1600 | 1600 | |
| L | 3050 | 3300 | 3400 | 3550 | 3550 | |
| K | 2000 | 2150 | 2150 | 2200 | 2200 | |
| Power kw | 7 | 7 | 7 | 9.7 | 9.7 | |
| Net load | 400 | 500 | 600 | 750 | 1000 | |
| Weight | 2500 | 2800 | 3000 | 3500 | 4000 |
Application
It's widely used as the mixing machine for solid medicine powder in pharmaceutical industry worldwide. The mixing uniformity is high, the material vessel is movable, these are very convenient for material loading, mixing, discharging and cleaning. It's easy to integrate with the upstream and downstream process, the problem of cross pollution and fly-dust caused by multi-material-transferring are solved. Various of material vessel might be equipped with this machine, so to meet the mixing requirement of large batch capacity, and multi-varities.
