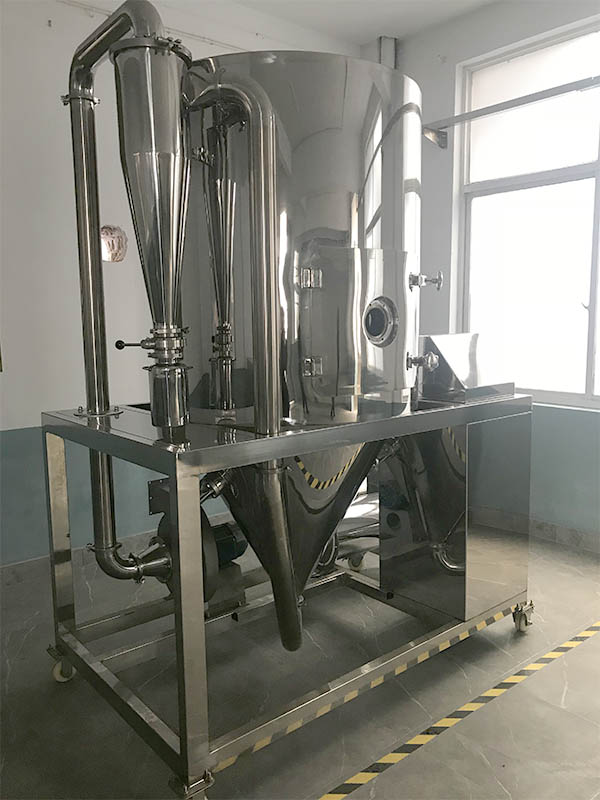

LPG Series High-Speed Centrifugal Spray Dryer
Working Principle
Spray Dryer for the open cycle and flow, centrifugal atomization. After air drying medium early, medium efficiency air filters and filtered according to the operating instructions by the draw and then heated by the heater blower high efficient filter through into the hot air dispenser spray drying the main tower. After the liquid material in accordance with an operation instruction peristaltic pump, atomizer into the high-speed rotation, the centrifugal force is dispersed into small droplets. In Spray drying main tower with hot air in small droplets full contact drying by heat exchange with a product along a particular path, then through a cyclone to achieve separation, the solid material is collected, filtered and then the gaseous medium, and then discharged. Spray the entire system easy to clean, no dead ends, in line with GMP requirements.
Video

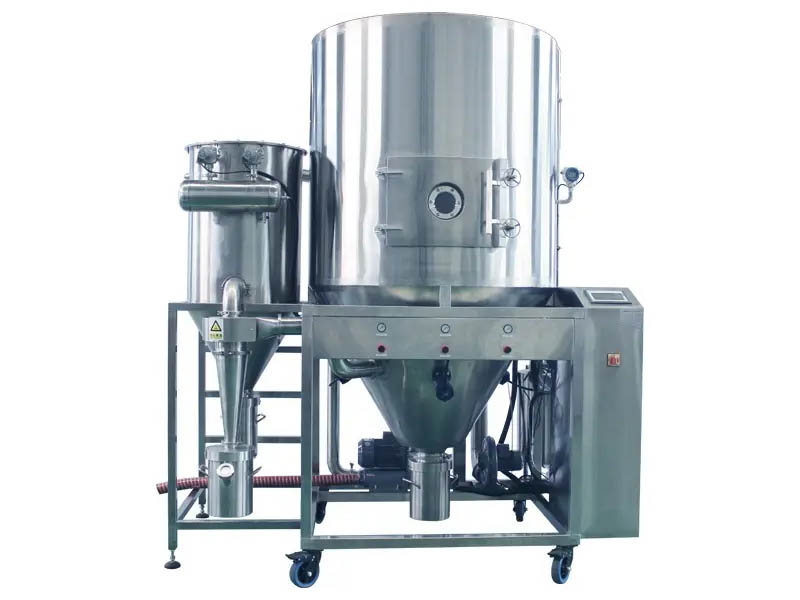

LPG Series High-Speed Centrifugal Spray Dryer
The Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pumpable paste states, for this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Technical Parameter
| Model/Item | 5 | 25 | 50 | 100 | 150 | 200 | 500 | 800 | 1000 | 2000 | 3000 | 4500 | 6500 | ||
| inlet air temperature(°C) | 140-350 Automatic Control | ||||||||||||||
| output air temperature(°C) | 80-90 | ||||||||||||||
| Atomizing way | High speed centrifugal atomizer （mechanical transmission） | ||||||||||||||
| Water evaporation upper limit (kg/h) |
5 | 25 | 50 | 100 | 150 | 200 | 500 | 800 | 1000 | 2000 | 3000 | 4500 | 6500 | ||
| Speed upper limit (rpm) | 25000 | 22000 | 21500 | 18000 | 16000 | 12000-13000 | 11000-12000 | ||||||||
| Spray disc diameter (mm) | 60 | 120 | 150 | 180-210 | According to the requiremet of technical process | ||||||||||
| heat source | Electricity | steam + electricity | Steam + electricity, fuel oil, gas, hot blast stove | ||||||||||||
| Electric heating power upper limit (kw) |
12 | 31.5 | 60 | 81 | 99 | Using other heat source | |||||||||
| Dimensions (L×W×H) (m) | 1.6×1.1×1.75 | 4×2.7×4.5 | 4.5×2.8×5.5 | 5.2×3.5×6.7 | 7×5.5×7.2 | 7.5×6×8 | 12.5×8×10 | 13.5×12×11 | 14.5×14×15 | Determined according to the actual situation | |||||
| Powder product recovery rate |
About 95% | ||||||||||||||

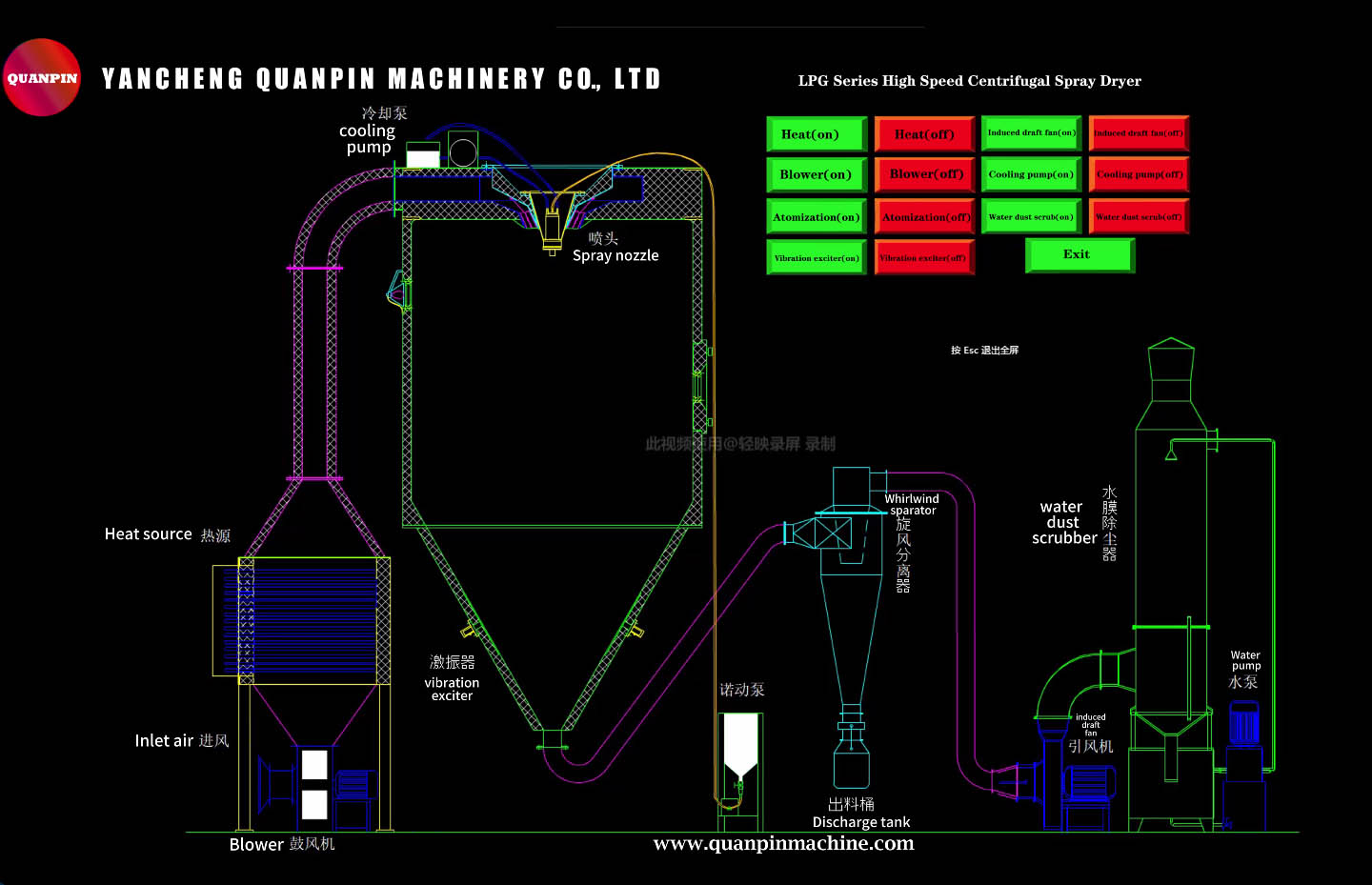

Flow Chart
Application
Chemical Industry: Sodium fluoride(potassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
Plastics and resin AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly-chlotoprene and etc.
Food Industry: Fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white(yolk), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
Ceramic: aluminium oxide, ceramic tile material, magnesium oxide, talcum and so on.
