Stainless Steel Tanks, Preparation Tanks

Short Description:

Stainless steel storage tanks, preparation tanks series of containers for the pharmaceutical industry, thick / thin with the use of tanks with a mezzanine, can be heated, cooled, the internal surface of the electrolytic mirror polishing, the head (conical) are by spinning processing, in line with the GMP standard, mixing device using sanitary mechanical seals, the container insulation using polyurethane or pearl cotton, the interface with international standards of quick-fit clamping, convenient and hygienic, the ferry side of the spinning process, the … …


Product Detail

Product Tags

Working Principle

This series of containers are suitable for thick/thin mixing in pharmaceutical industry, the tanks are equipped with interlayer, can be heated, cooled, the inner surface is polished by electrolytic mirror, the head (conical) are processed by spinning, in line with GMP standards, the mixing device adopts sanitary mechanical seal, the container insulation adopts polyurethane or pearl cotton, the interface adopts international standard quick-fit clamp type, convenient and hygienic, the ferry edge is processed by spinning, the outer surface is polished, The outer surface is polished, sandblasted, frosted or cold rolled in original colour matte, etc., so that the container can show its excellent quality in any site. The equipment is equipped with air breathing holes, CIP cleaning and spraying, sight glass flange quick-opening manhole and other devices.

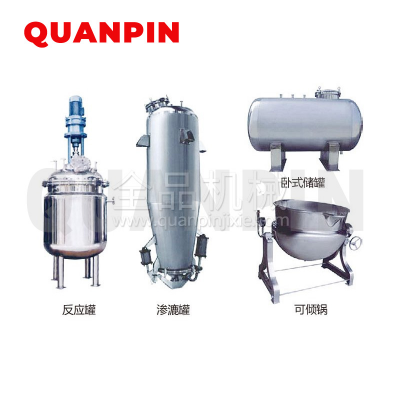

Stainless Steel Tanks, Preparation Tanks-2

According to the different storage capacity from 1000-15000L, storage tank capacity of more than 20000 tanks, it is recommended to use outdoor storage tanks, storage tanks made of SUS304 stainless steel, according to the tank design requirements can be accompanied by the following devices:

Stirrer, inlet and outlet, manhole, thermometer, liquid level indicator, high and low liquid level alarm hole, anti-fly, dust-proof breathing air holes, measuring device.

Technical Parameter

Name\Model JRF-15 JRF-20 JRF-30 JRF-40 JRF-60 JRF-80 JRF-100
Inner Cylinder Diameter 760 760 1170 1170 1470 1670 1870
Outer Cylinder Diameter 1280 1280 1840 1840 2200 2460 2700
Total height 3500 3500 4260 4760 4810 5110 5310
Equipment Weight 3.15T 3.65T 6.8T 7.5T 9.8T 11.7T 13.5T
Hot air outlet diameter 300 300 500 500 500 600 600
Hot air outlet height 1585 1585 1670 1670 1670 1770 1770
Flue gas outlet diameter 250 250 250 250 250 300 320
Flue gas outlet height 2050 2050 2220 2220 2220 2385 2385
Bullhorn elbow type XZD/G Φ578 XZD/G Φ810
Hourly coal consumption 43kg 57kg 85kg 115kg 170kg 230kg 286kg
Coal combustion value 5000kcal/h
Thermal efficiency 70-78% 75-80%
Model of smoke inducing fan Y5-47-3.15C Y5-47-4C Y5-47-4C Y5-47-4C Y5-47-5C Y5-47-5C
-1.5KW -2.2KW -3KW -4KW -7.5KW -7.5KW
