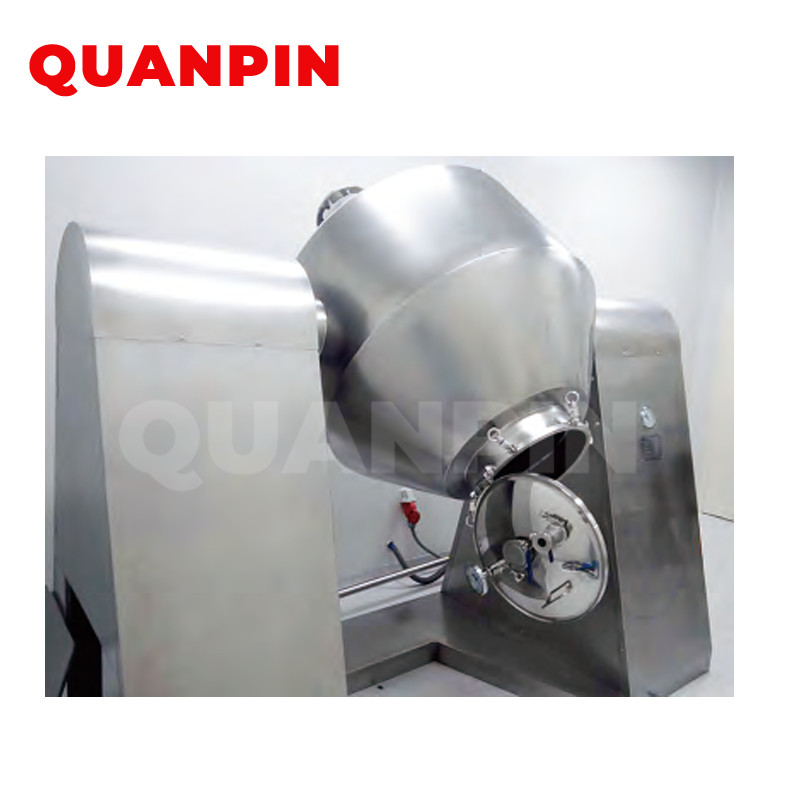

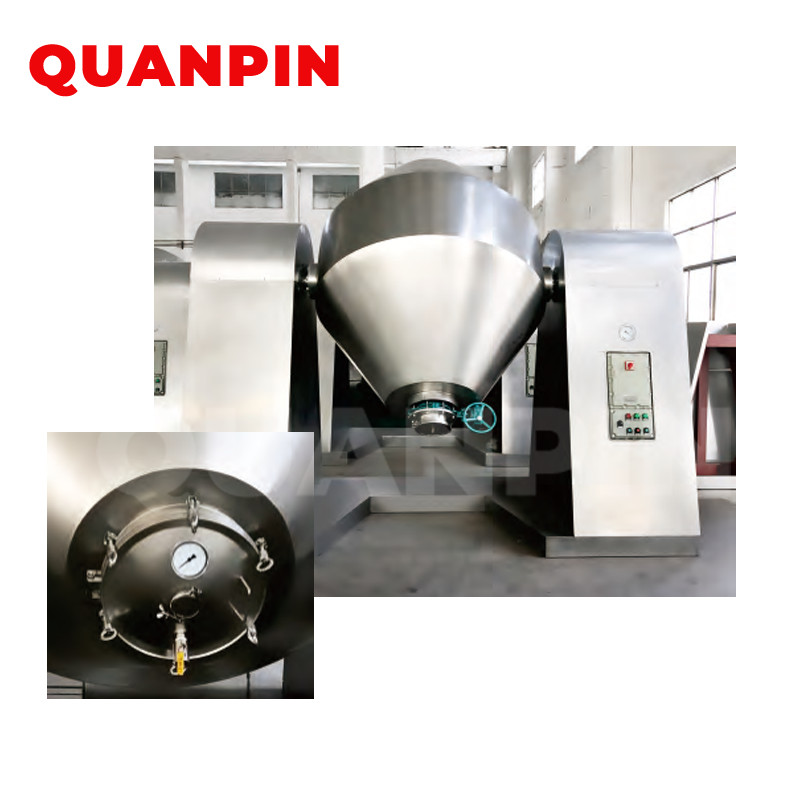

SZG Series Double Cone Rotary Vacuum Dryer
SZG Series Conical Vacuum Dryer( Rotary Conical Vacuum Dryer)
Working principle:
SZG double-cone rotary vacuum dryer is a double-cone rotary tank. Under the vacuum state, the tank is heated by introducing heat-conducting oil or hot water into the jacket, and the wet material absorbs the heat through the inner wall of the tank. The moisture evaporated from the wet material after heating is pumped through a vacuum pump. Because the inside of the tank is in a vacuum state, and the rotation of the tank causes the materials to keep moving up and down and turning inside and out, so the drying speed of the materials is accelerated, the drying efficiency is improved, and the purpose of uniform drying is achieved.
Video

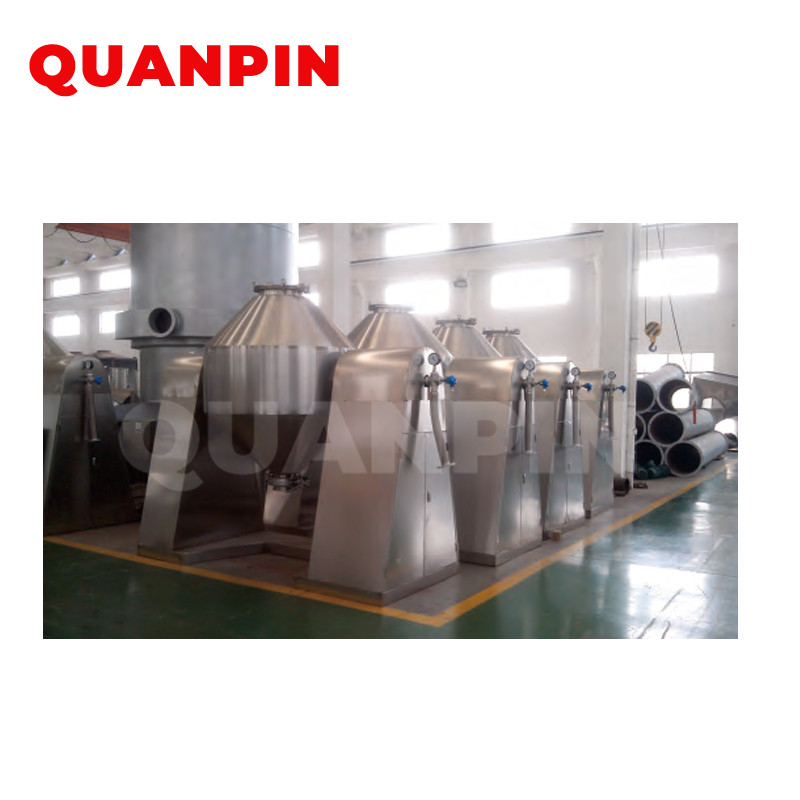

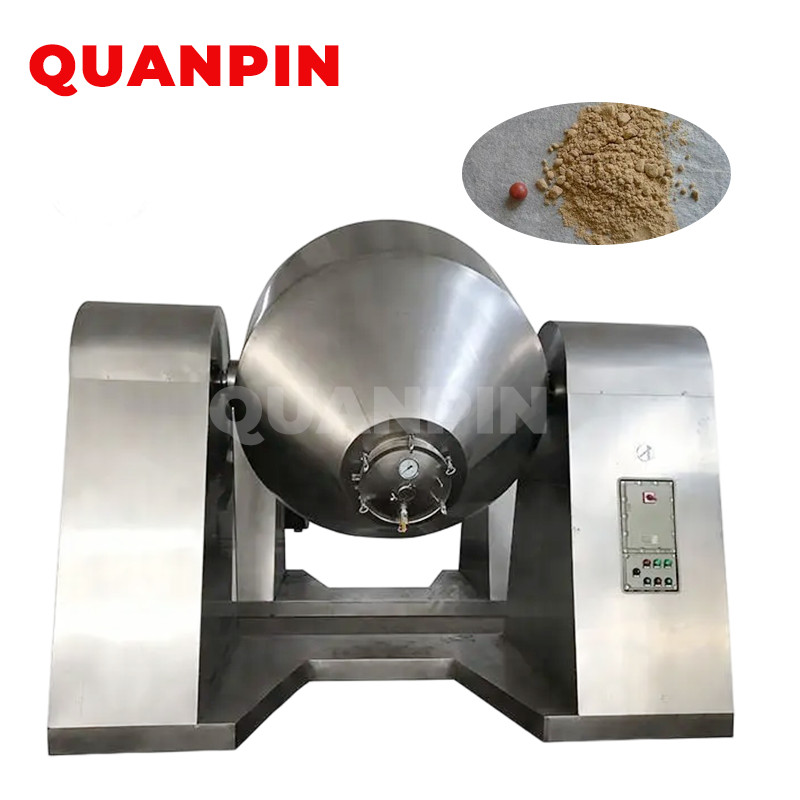

Principle
As a specialized company in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw material, we have designed specially a stirring plate buffer for you. The biggest may be 8000L. Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can berealized within a short time.
Features
1. When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Its temperature of operation can be adjusted form 20-160 ℃.
2. Compared to ordinal dryer, its heat efficiency will be 2 times higher.
The heat is indirect. So the raw material can not be polluted. It is in conformity with the requirement of GMP. It is easy in washing and maintenance.
Remark
1. Speed adjusting motor of 0-6rpm might be chosen according to the user's requirements. The following aspects should be point out when to order.
2. The above-mentioned parameters are calculated based on material density of 0.6g/cm3. If it's over, please point out.
3. If certificate for pressure vessel is required, please point out.
4. If glass lining for interior surface is required, please point out.
5. If the material is explosive, or flammable, the calculation should be made according to trial result.
Technical Parameter
| Item | Specification | ||||||||||||
| 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000-10000 | |||
| Tank volume | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000-10000 | ||
| Loading volume (L) | 50 | 100 | 175 | 250 | 375 | 500 | 750 | 1000 | 1500 | 2000 | 2500-5000 | ||
| Heating area (m2) | 1.16 | 1.5 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 10.2 | 12.1 | 14.1 | ||
| Speed(rpm) | 6 | 5 | 4 | 4 | 4 | ||||||||
| Motor power (kw) | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | ||
| Rotating height(mm) | 1810 | 1910 | 2090 | 2195 | 2500 | 2665 | 2915 | 3055 | 3530 | 3800 | 4180-8200 | ||
| Design pressure in the tank (Mpa) | 0.09-0.096 | ||||||||||||
| Jacket design pressure (Mpa) | 0.3 | ||||||||||||
| Weight (kg) | 925 | 1150 | 1450 | 1750 | 1900 | 2170 | 2350 | 3100 | 4600 | 5450 | 6000-12000 | ||
Speed adjusting motor of O- 6rpm might be chosen according to the user's requirements. The following aspects shoud be point out when to order.
1. The above-mentioned parameters are calculated based on material density of O.6g'cm.# i's over, please point out.
2. If certificate for pressure vessel is required, please point out.
3. If glass lining for intenior surface is required, please point out. If the material is explosive, or flammable, the calculation shoud be made according to trial results.

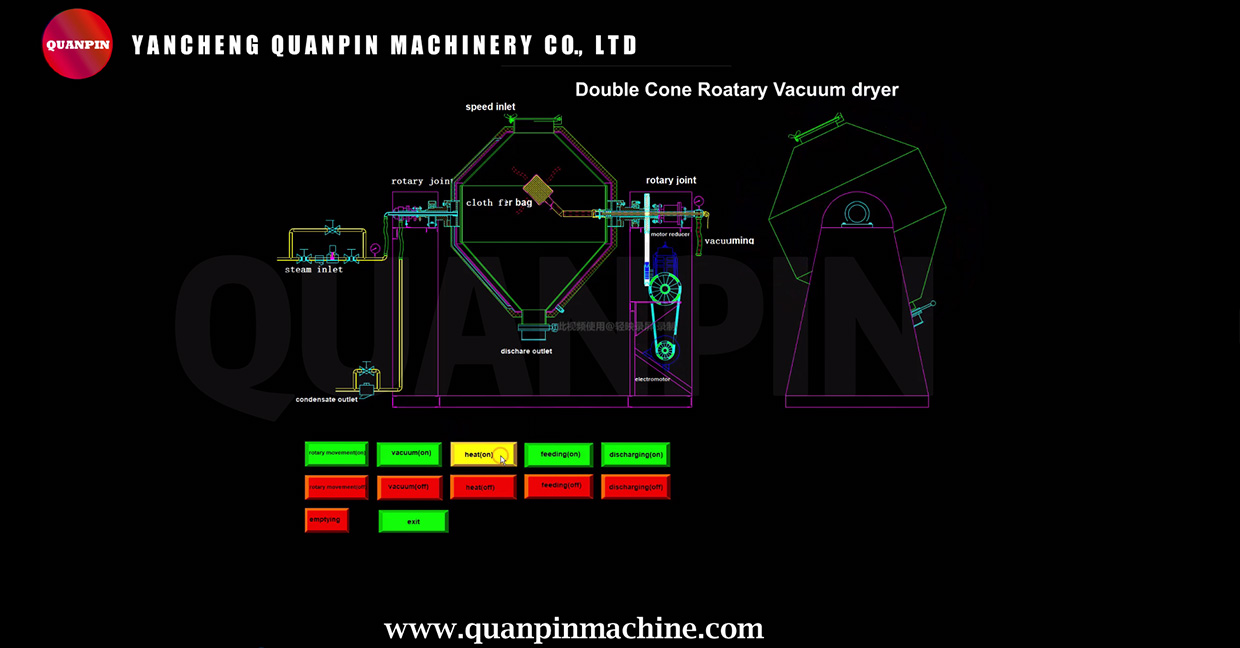

Schematic Of The Structure
Installation Diagram
Application
Range of application:
This dryer is suitable for vacuum drying and mixing of powder and granular materials in the pharmaceutical, food, chemical and other industries, especially for those materials with the following requirements:
·Temperature-sensitive or heat-sensitive materials
·Easily-oxidized or dangerous materials
·Materials that has solvents or toxic gases to recovery
·Material that has requirements for crystal shape
·Material requiring extremely low residual volatiles
Notes To Order
·Its heating has two ways;hot water,steam conduction oil.
·When order,please indicate the temperature of raw matrial to be undertaken of the operation temperature of dryer in order to choose or provide suitable heat source for you.
·When dry viscous raw material,our factory will design special stiming device in the chamber.
·The auxiliary parts of vacuum drying system can be supplied and installed by our factory.Please indicate therm when order.
·If having special requirements,our factory can also design,manufacture and install as request.
·The cost of complete equipment should be increased in accordance with the needs.
