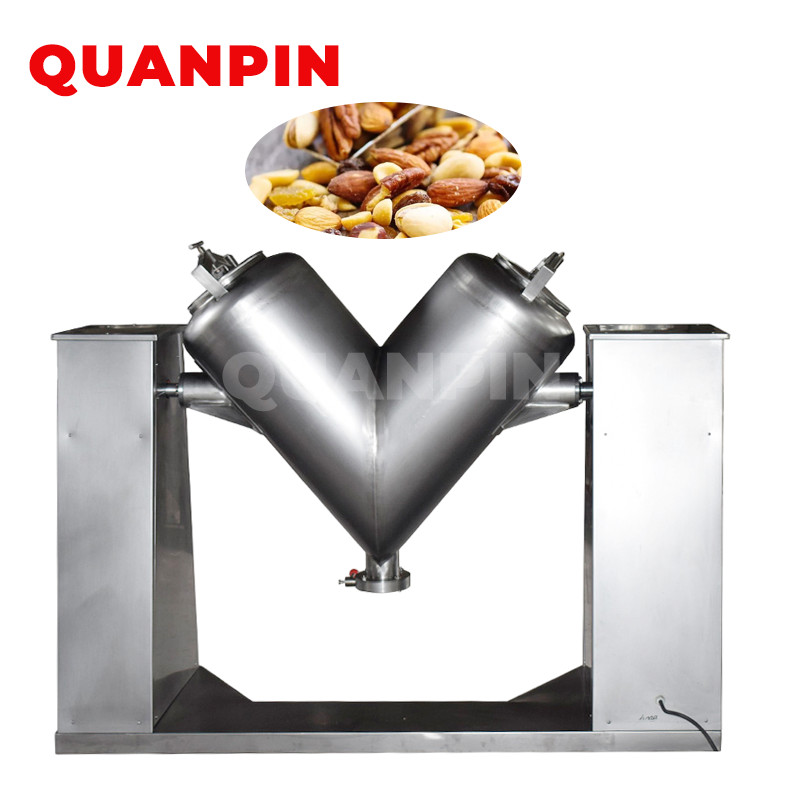

WHJ Series Mixer
WHJ Series Mixer
WHJ Series Mixer is with bellow featrues.
The structure of mixing barrel is unique.
The mixing effciency is high, no dead corner.
The barrel is made of stainless steel and its internal walls are polished.
The outside qppearance is beautiful. The mixing is uniform, with wide application, meets GMP standard.
The feeding system for the mixer has more choice, such as vacuum feeding system, screw feeding system and other kind of feeding system.it can be designed based on the customer site.
Control system has more choices, such as push button, HMI+PLC and so on
It is used to mix the dry-powder, granular materials with good liquidity.
It consists of two asymmetric cylinders. The materials can flow as vertical and horizontal direction. The mixing uniformity will be above 99%.

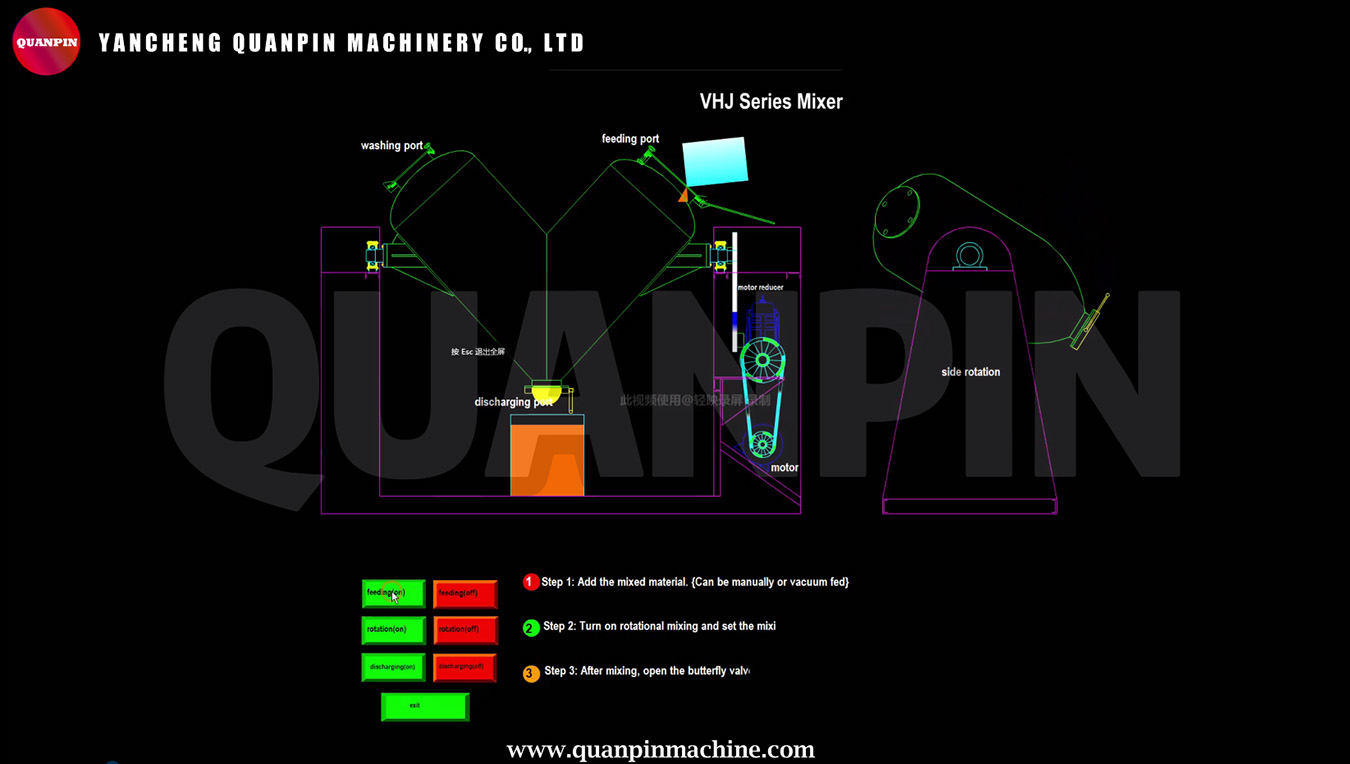

Video

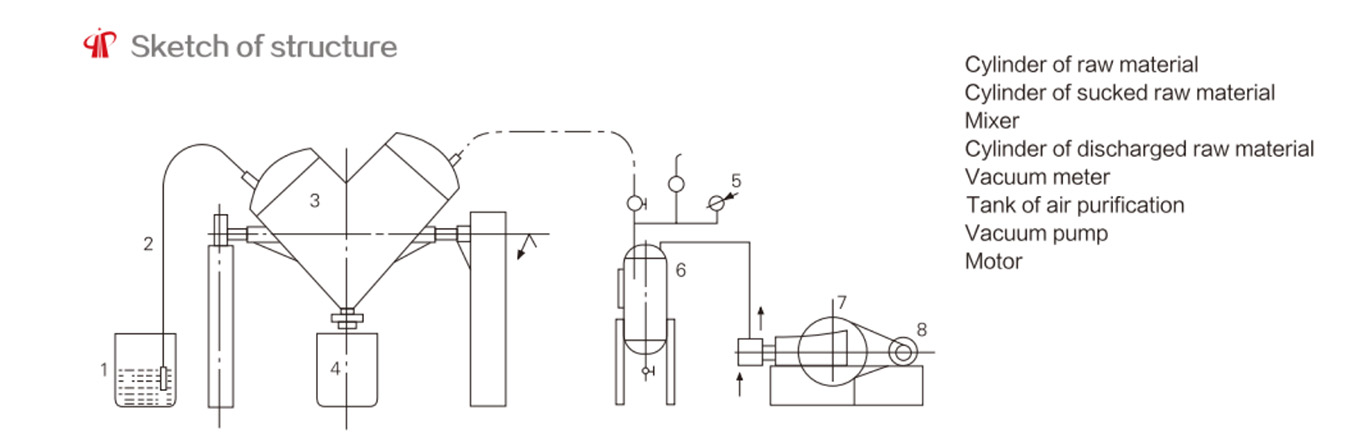

Sketch of Structure
Technical Parameter
| Spec/item | Total volume L | Working capacity L | Working capacity kg | Rotating speed rpm | Power kw | Weight kg |
| 50 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 150 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 300 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 500 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1000 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1500 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2000 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3000 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4000 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5000 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6000 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8000 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10000 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
Application
The mixer is used for mixing the dry material grains in the medical, chemical, food, metallurgical and other industries.
The mixing barrel structure is unique. The mixing efficiency is high. There is no corner that can not be reached. The barrel uses the stainless steel and its internal and external walls are polished. The outside appearance is beautiful. The mixing is uniform, with wide application. The mixer meets GMP standard.
