WZ Double-Effect External Circulation Vacuum Evaporator

Short Description:

It is widely used in the evaporation and concentration of water or organic solution in the industries of medicine, food, chemical, light industry, etc. It is especially suitable for heat-sensitive materials, and is continuously concentrated at low temperature under vacuum condition.

Send email to us

Product Detail

Product Tags

DW Series Mesh-Belt Dryer

Widely used in medicine, food, chemical industry, light industry and other industries of water or organic solution evaporation and concentration, especially suitable for heat-sensitive materials, low-temperature continuous concentration under vacuum conditions.

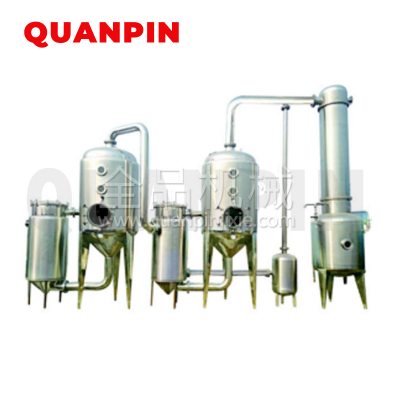

WZ Double-Effect External Circulation Vacuum Evaporator

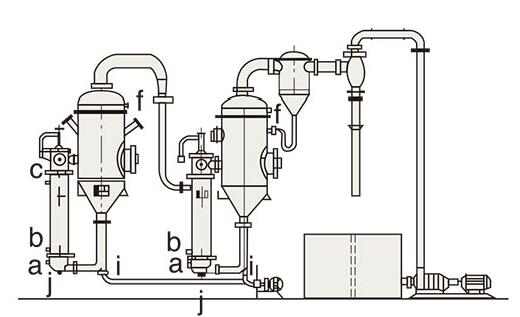

WZ Double-Effect External Circulation Vacuum Evaporator-2

Technical Parameter

Model and specification		WZ2-500	WZ2-1000	WZ2-1500	WZ2-2000	WZ2-3000
Max evaporating capacity kg/h		500	1000	1500	2000	3000
Steam consumption kg/h		≤250	≤500	≤750	≤1000	≤1500
Water consumption T/h		6	12	15	18	25
Steam pipe orifice mm		40	50	50	65	80
Dimension mm	Length	4000	5000	6500	6600	6800
	Width	1500	1700	1800	2000	2000
	Height	3300	3500	4000	4200	4500
Evaporation temperature℃	First effect	80-90
Evaporation temperature℃	Second effect	55-70
Designed pressure Mpa	First effect	-0.06
Designed pressure Mpa	Second effect	-0.75
Vacuum degree Mpa		-0.75
Condensing ratio		1.1-1.3
