WZ Single-Effect External Circulation Vacuum Evaporator
WZ Single-Effect External Circulation Vacuum Evaporator
Uses:
This equipment is suitable for evaporation and concentration process of liquid materials in pharmaceutical, food, chemical, light industry and other industries.
Features:

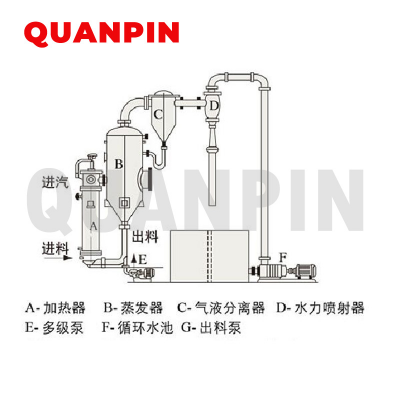

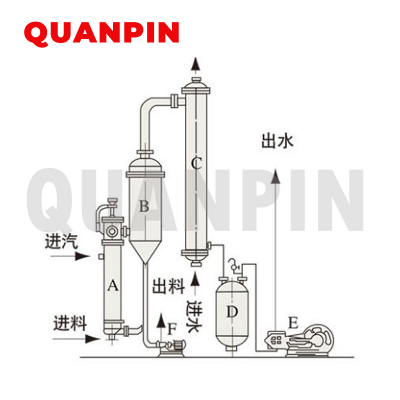

(1) This equipment mainly consists of tube type external heater and vacuum evaporator and auxiliary devices, the material is heated for a short period of time, evaporation speed, can better maintain the heat-sensitive materials have physical effect.
(2) This equipment adopts two-stage defoaming, significantly reduce the loss of liquid material.
(3) Simple structure, easy to clean.
(4) The concentration ratio is large, the maximum specific gravity can reach 1.35.
(5) All contact with the material are made of high quality stainless steel, in line with pharmaceutical and food hygiene requirements.
Technical Parameter
| Model | WZ-100 | WZ-500 | WZ-250 |
| Evaporation capacity (kg/h) | 1000 | 500 | 250 |
| Heating area (m2) | 20 | 10 | 5 |
| Vacuum degree in the tank (MPa) | 0.07 | 0.07 | 0.07 |
| Vapour pressure (MPa) | 0.2 | 0.2 | 0.2 |
| Vapour consumption (kg/hr) | 1300 | 650 | 320 |
| Equipment weight (kg) | 600 | 400 | 300 |
Technical Parameter
| Name\Model | JRF-15 | JRF-20 | JRF-30 | JRF-40 | JRF-60 | JRF-80 | JRF-100 |
| Inner Cylinder Diameter | 760 | 760 | 1170 | 1170 | 1470 | 1670 | 1870 |
| Outer Cylinder Diameter | 1280 | 1280 | 1840 | 1840 | 2200 | 2460 | 2700 |
| Total height | 3500 | 3500 | 4260 | 4760 | 4810 | 5110 | 5310 |
| Equipment Weight | 3.15T | 3.65T | 6.8T | 7.5T | 9.8T | 11.7T | 13.5T |
| Hot air outlet diameter | 300 | 300 | 500 | 500 | 500 | 600 | 600 |
| Hot air outlet height | 1585 | 1585 | 1670 | 1670 | 1670 | 1770 | 1770 |
| Flue gas outlet diameter | 250 | 250 | 250 | 250 | 250 | 300 | 320 |
| Flue gas outlet height | 2050 | 2050 | 2220 | 2220 | 2220 | 2385 | 2385 |
| Bullhorn elbow type | XZD/G Φ578 | XZD/G Φ810 | |||||
| Hourly coal consumption | 43kg | 57kg | 85kg | 115kg | 170kg | 230kg | 286kg |
| Coal combustion value | 5000kcal/h | ||||||
| Thermal efficiency | 70-78% | 75-80% | |||||
| Model of smoke inducing fan | Y5-47-3.15C | Y5-47-4C | Y5-47-4C | Y5-47-4C | Y5-47-5C | Y5-47-5C | |
| -1.5KW | -2.2KW | -3KW | -4KW | -7.5KW | -7.5KW | ||
