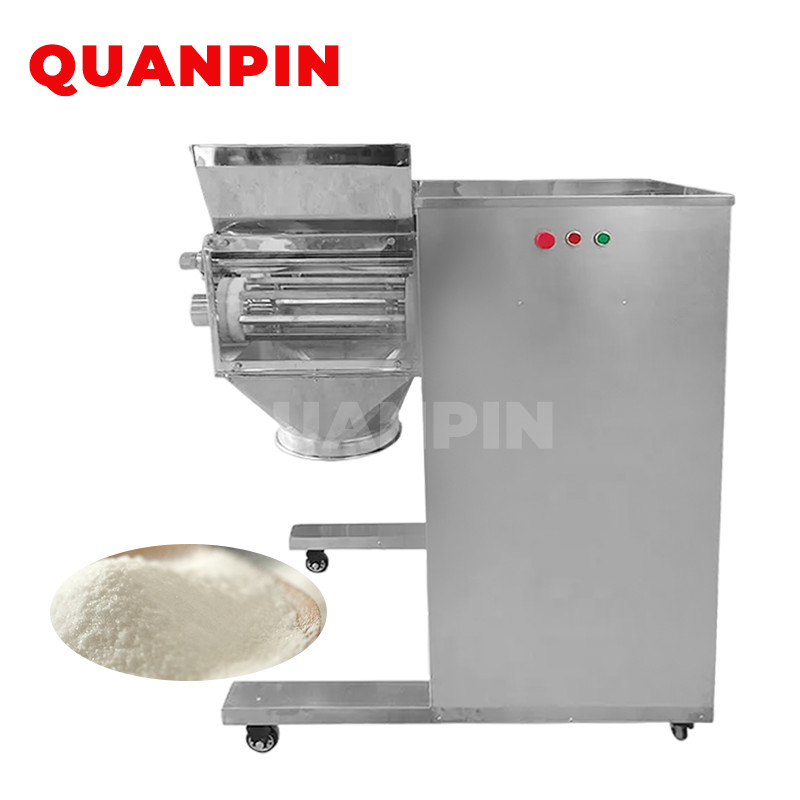

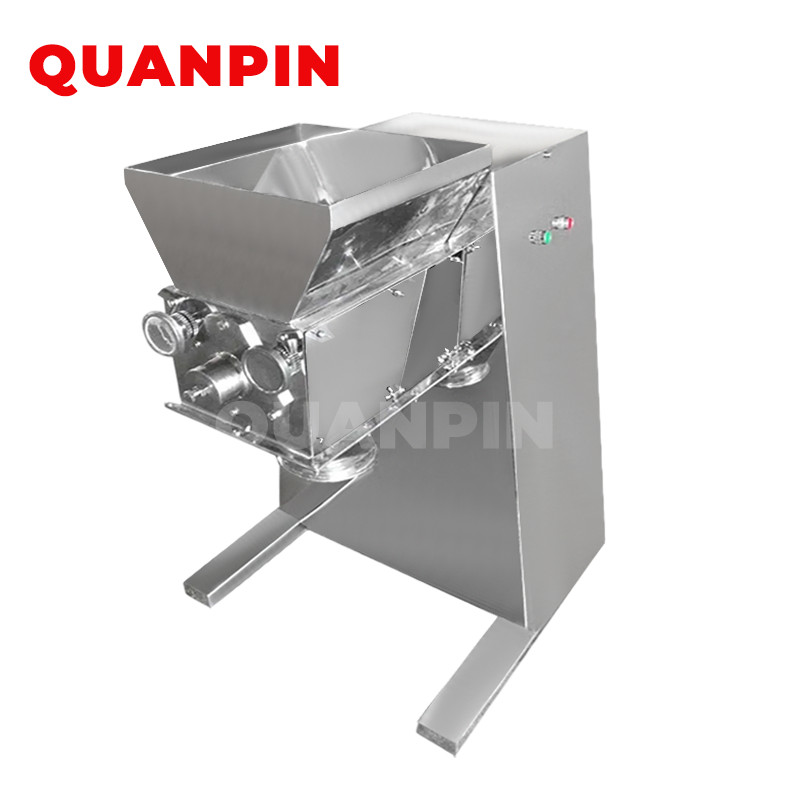

YK Series Swaying Granulator (Oscillating Granulator Oscillator)
YK Series Swaying Granulator (Oscillating Granulator Oscillator)

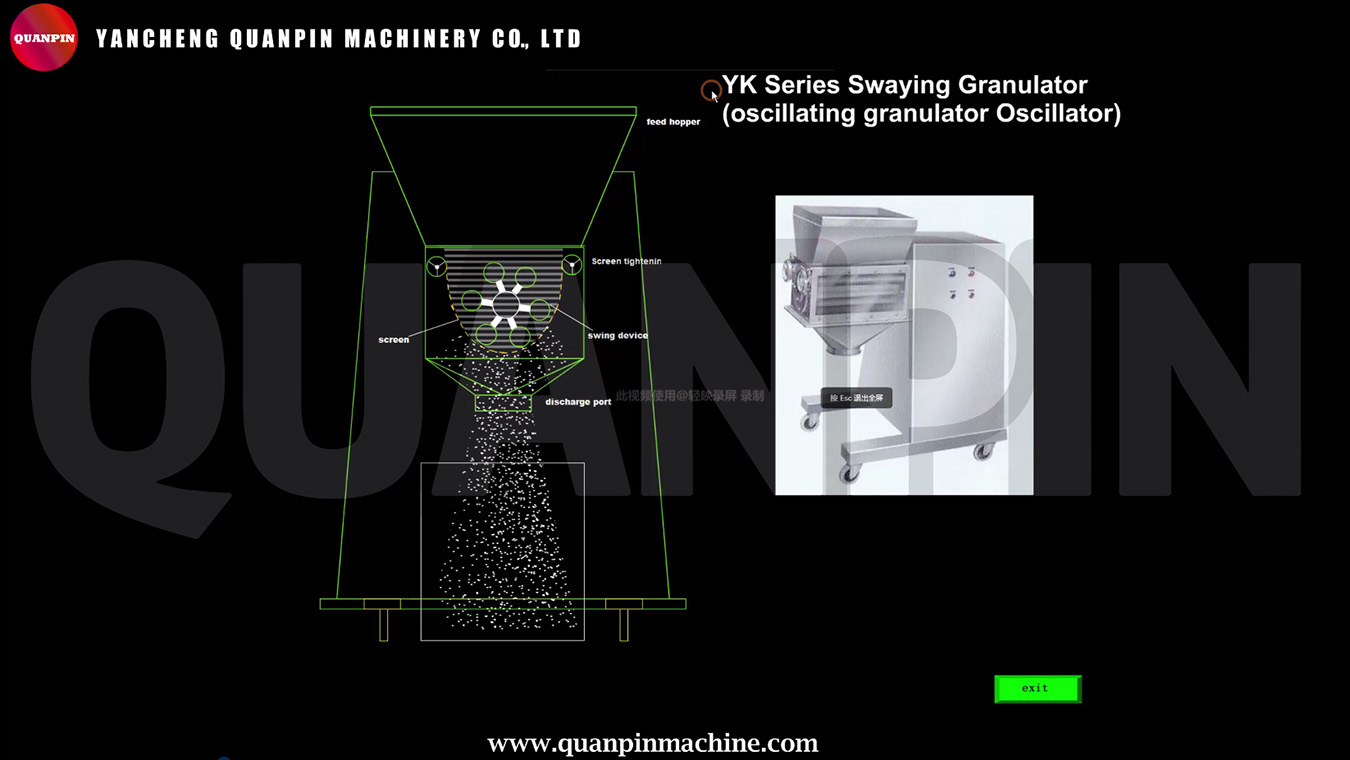

Rotated by the motor, belt wheel, in the role of an eccentric crank and lift rack, seven gear shaft rotation angle for reciprocating hob periodically. Material constant motion by the sieve and rotor gap control and out of a variety of particles. In the crush dry material, the suspect form a block of material in the drum by a knife made of seven horns smash hit. And forced dry material through the screen.
Video
Features
1). This machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be directly used to crush the agglomerate material into small granule.
2). In chemical medicine field, it can be used to granulate the mixed powder into granule, and compressed granule into tablet after being dried. It also can be used to granulate the coagulated material that was formed during storage or during chemical processing. In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.
3). It is not suitable for solid, fluid medium, paste or pulverizing,
4). The number of meshed sieve should be based on the requirements of the size of granule, decided by the users.
Description
This machine is very small, and it can be movable for the material for this machine, it can be chosen based on the customer needs.
Technical Parameter
| Spec | YK-160 | YK-320 |
| Capacity (kg/h) | 50-200 | 50-400 |
| Power kw) | 2.2 | 7.5 |
| Speed (rpm) | 65 | 65 |
| Sway angle(℃) | 360 | 360 |
| Diameter (mm) | ø160 | ø320 |
| Overall dimension(LxWxH) | 1000x800x1300 | 1500x1200x1500 |
| Weight (kg) | 450 | 750 |
Applications
The machine is applicable for pharmaceutical, foodstuff, chemical, solid drink and so on industries. It can make well stirred raw materials become granules of required size of crush the blocked raw materials into small granules.
