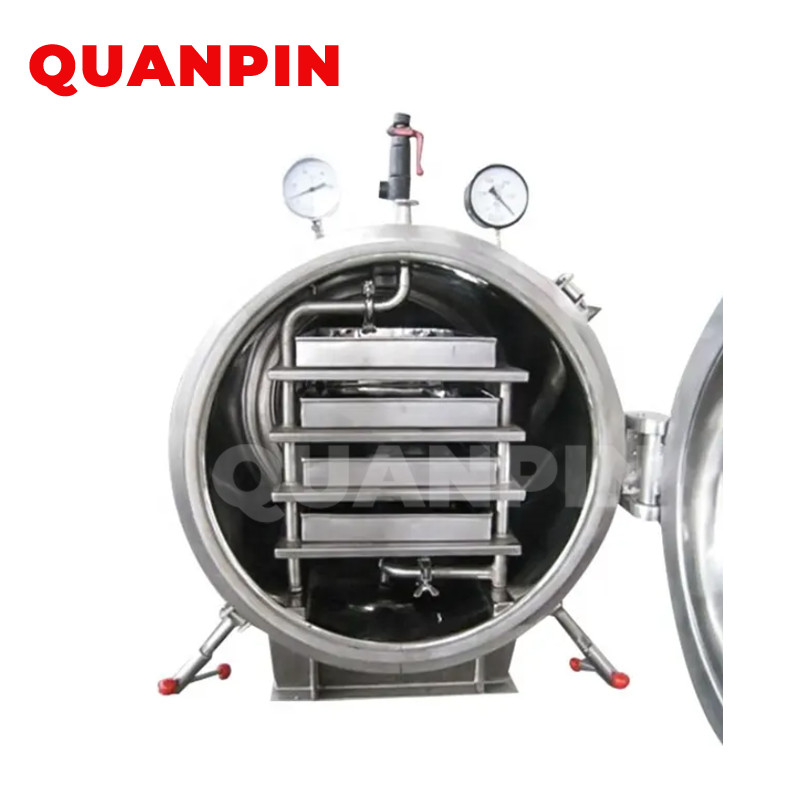

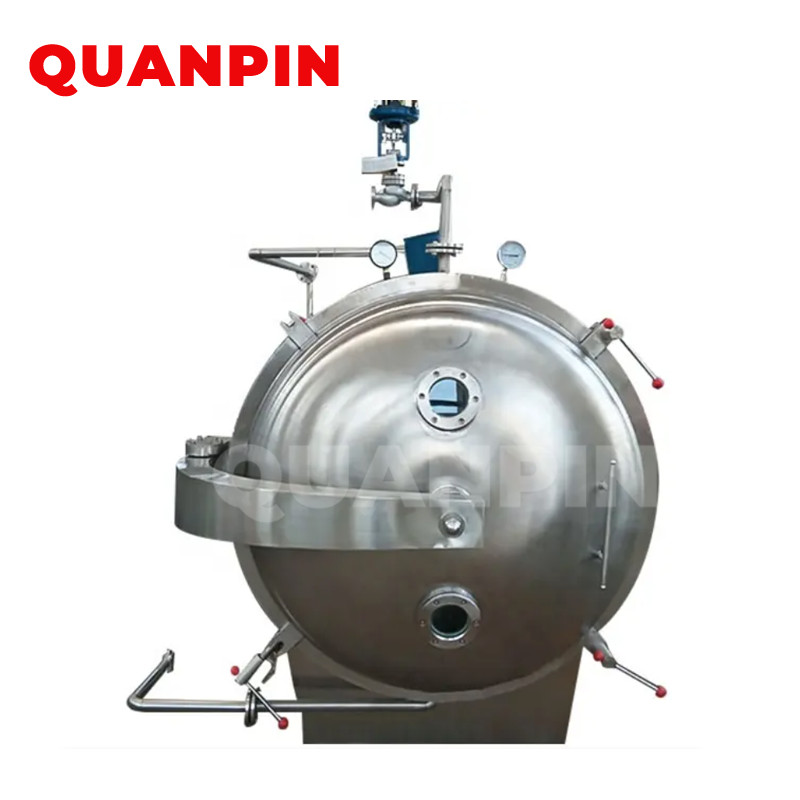

YZG Series Round Shape Vacuum Dryer

Short Description:

Specification: YZG600 – YZG1400A

Inside size of drying box（mm): Φ600mm*976mm — Φ1400mm*2080mm

Outer dimensions of drying box (mm): 750mm*950mm*1050mm — 1550mm*1900mm*2150mm

Size of baking tray(mm): 310mm*600mm*45mm — 460mm*640mm*45mm

When using condenser, vacuum pump model, power(kw): 2X-15A/ 2KW — 2X-70A/ 5.5KW

When no condenser is used, vacuum pump model, power(kw): SK-0.5 / 1.5KW — SK-1 / 5.5KW

Weight(kg): 250kg-1400kg

Round Vacuum Dryer, Drying Machinery, Vacuum Dryer, Round Dryer, Square Dryer

Send email to us

Product Detail

Product Tags

YZG Series Round Shape Vacuum Dryer

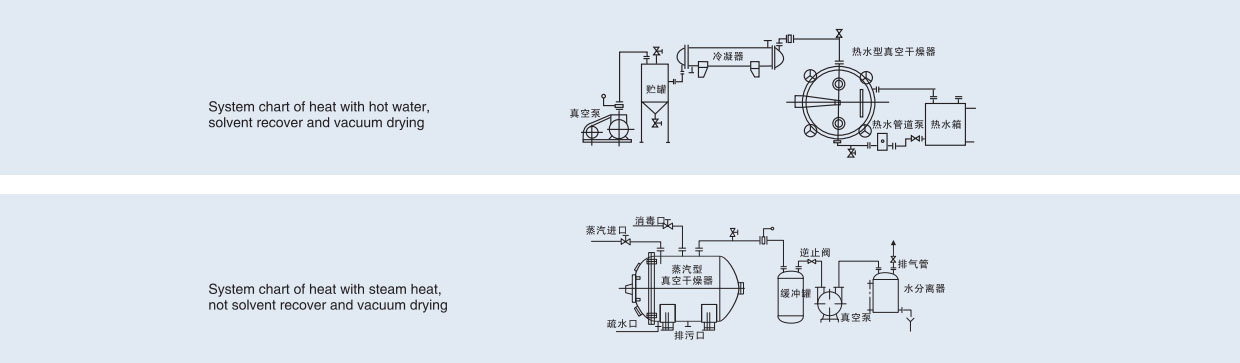

It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to pump air and humidity out, the dry speed will be faster. Note: if use condenser, the solvent in raw material can be recovered. If the solvent is water, condenser might be canceled and the investment and energy could be saved.

It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.

Video

Feature

1. Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.
2. The heat source for evaporation may be low pressure steam or surplus heat steam.
The heat loss is less.
3. Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.
4. It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.

Technical Parameter

Name/Specification	YZG-600	YZG-800	YZG-1000	YZG-1400A
Inside size of drying box（mm)	Φ600*976	Φ800*1320	Φ1000*1530	Φ1400*2080
Outer dimensions of drying box（mm)	7509501050	95012101350	115014101600	155019002150
Layers of drying rack	4	4	5	8
interlayer distance（mm)	85	100	100	100
Baking pan size（mm)	31060045	46064045	46064045	46064045
Number of baking trays	4	4	0	32
pressure inside the drying rack(MPa)	≤0.784	≤0.784	≤0.784	≤0.784
oven temperature(°C)	35-150	35-150	35-150	35-150
No-load vacuum in the box(MPa)	-0.1
At -0.1MPa, heating temperature 110oAt C, the vaporization rate of water	7.2	7.2	7.2	7.2
When using condenser, vacuum pump model, power(kw)	2X-15A/ 2KW	2X-30A/ 3KW	2X-30A/ 3KW	2X-70A / 5.5KW
When no condenser is used, vacuum pump model, power(kw)	SK-0.5 / 1.5KW	SK-1 / 2.2KW	SK-1 / 2.2KW	SK-1 / 5.5KW
Drying box weight	250	600	800	1400
