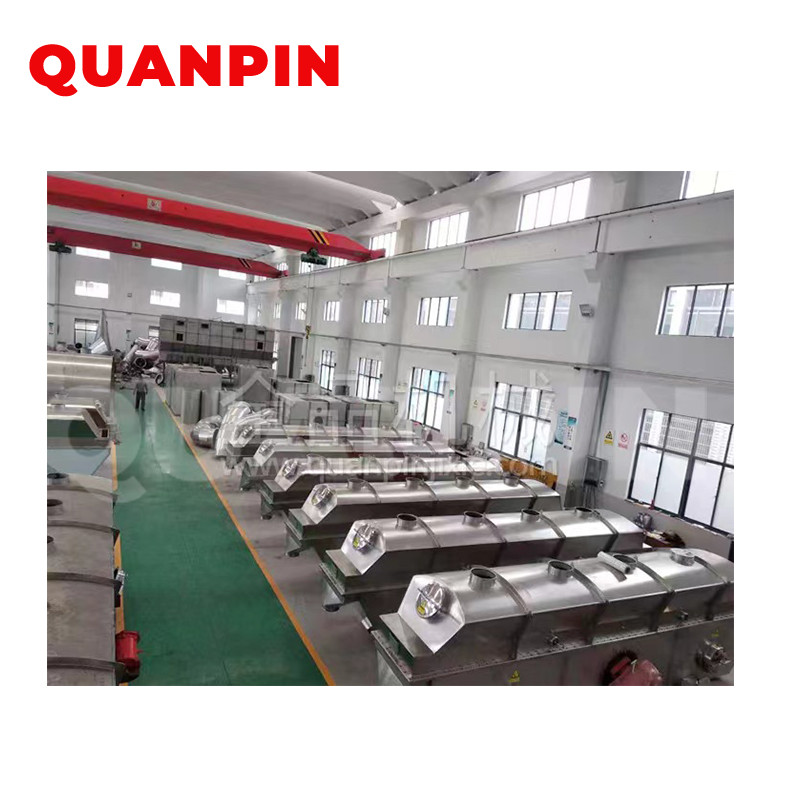

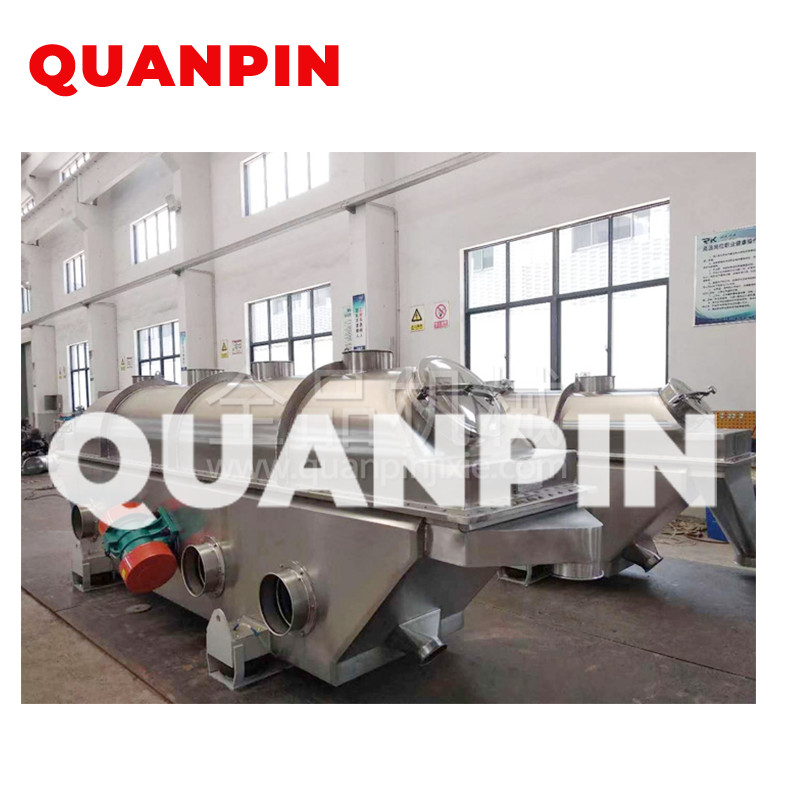

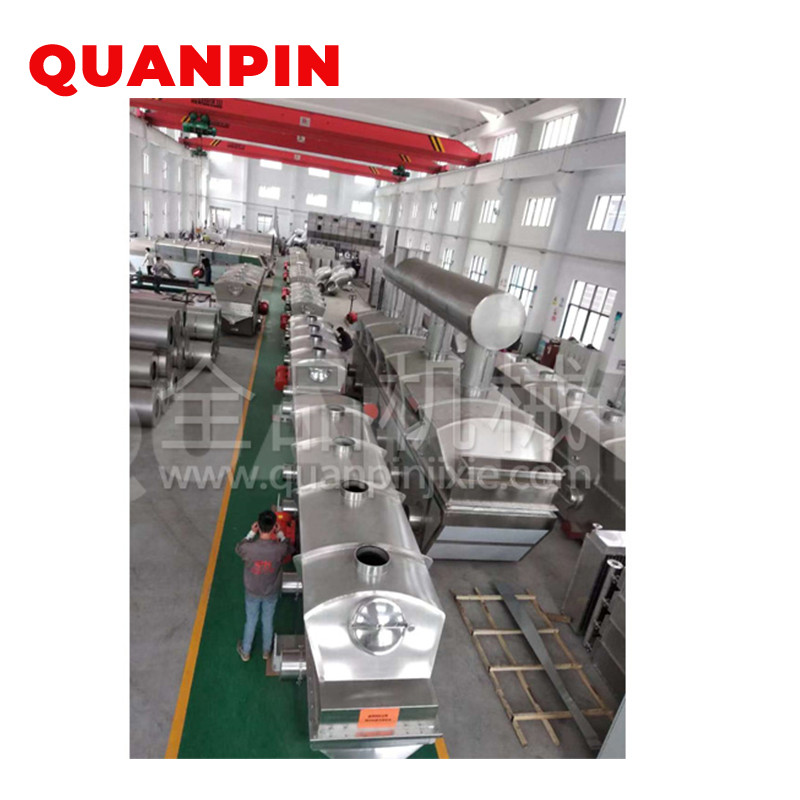

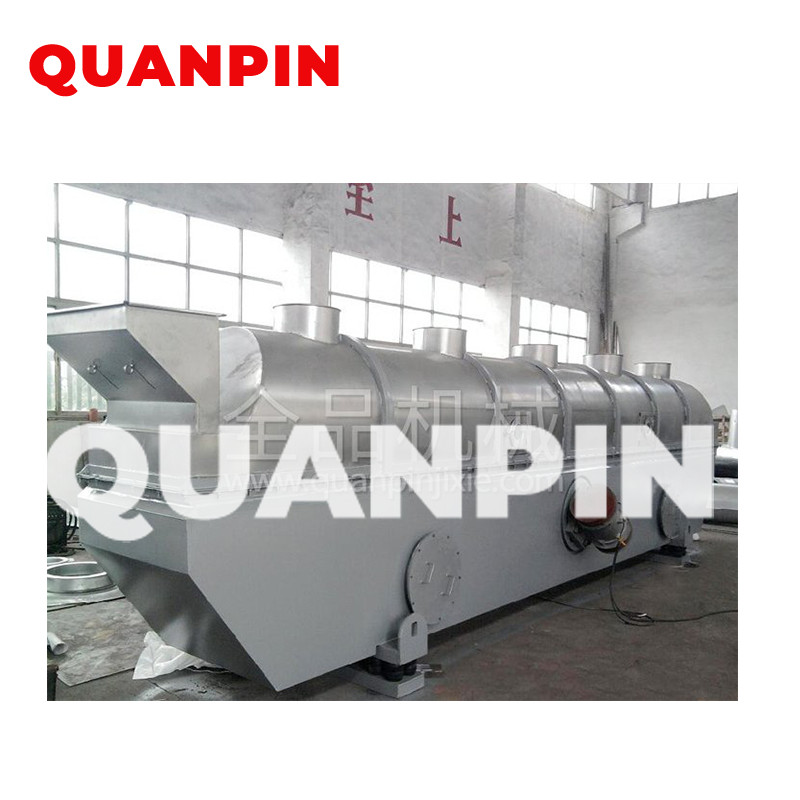

ZDG Series Vibrating Fluid Dryer
ZDG Series Vibrating Fluid Dryer
The drier is suitablity in chemical industry, light industry, pharmaceutical, food, plastic, oil, slang, salt, sugar and so on, for drying, cooling and weting.
Video
Principle
Raw material is fed into the machine and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and dust collector and the dry product is discharged through discharge outlet.
Features
Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life span.
The fluidized state is stable and no dead angle and phenomenon of broken out.
It is good in regulation and wide in suitability.
It is small for damaging to the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials gave anomalous shape; It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure. The environment of operation is clean.
Technical Parameter
| Model | Area of fluidized-bed (m) |
Temperature of inlet air (P) |
Temperature of outlet (C) |
Capacity to vapor moisture(kg/h) |
Vibration motor | |
| Model | Power kw | |||||
| ZDG3x0.30 | 0.9 | 70-140 | 40-70 | 20～35 | YZS8-6 | 0.75x2 |
| ZDG4.5x0.30 | 1.35 | 35～50 | YZS10-6 | 0.75x2 | ||
| ZDG4.5x0.45 | 2.025 | 50～70 | YZS15-6 | 1.1x2 | ||
| ZDG4.5x0.60 | 2.7 | 70～90 | YZS15-6 | 1.1x2 | ||
| ZDG6x0.45 | 2.7 | 80～100 | YZS15-6 | 1.5x2 | ||
| ZDG6x0.60 | 3.6 | 100～130 | YZS20-6 | 1.5x2 | ||
| ZDG6x0.75 | 4.5 | 120～170 | YZS20-6 | 2.2x2 | ||
| ZDG6x0.9 | 5.4 | 140～170 | YZS30-6 | 2.2x2 | ||
| ZDG7.5x0.6 | 4.5 | 130～150 | YZS30-6 | 2.2x2 | ||
| ZDG7.5x0.75 | 5.625 | 150～180 | YZS40-6 | 3.0x2 | ||
| ZDG7.5x0.9 | 6.75 | 160～210 | YZS40-6 | 3.0x2 | ||
| ZDG7.5x 1.2 | 9.0 | 200～280 | YZS50-6 | 3.7x2 | ||
| ZDG7.5x 1.5 | 11.25 | 230～330 | YZS50-6 | 3.7x2 | ||
| ZDG8x 1.8 | 14.4 | 290～420 | YZS75-6 | 5.5x2 | ||

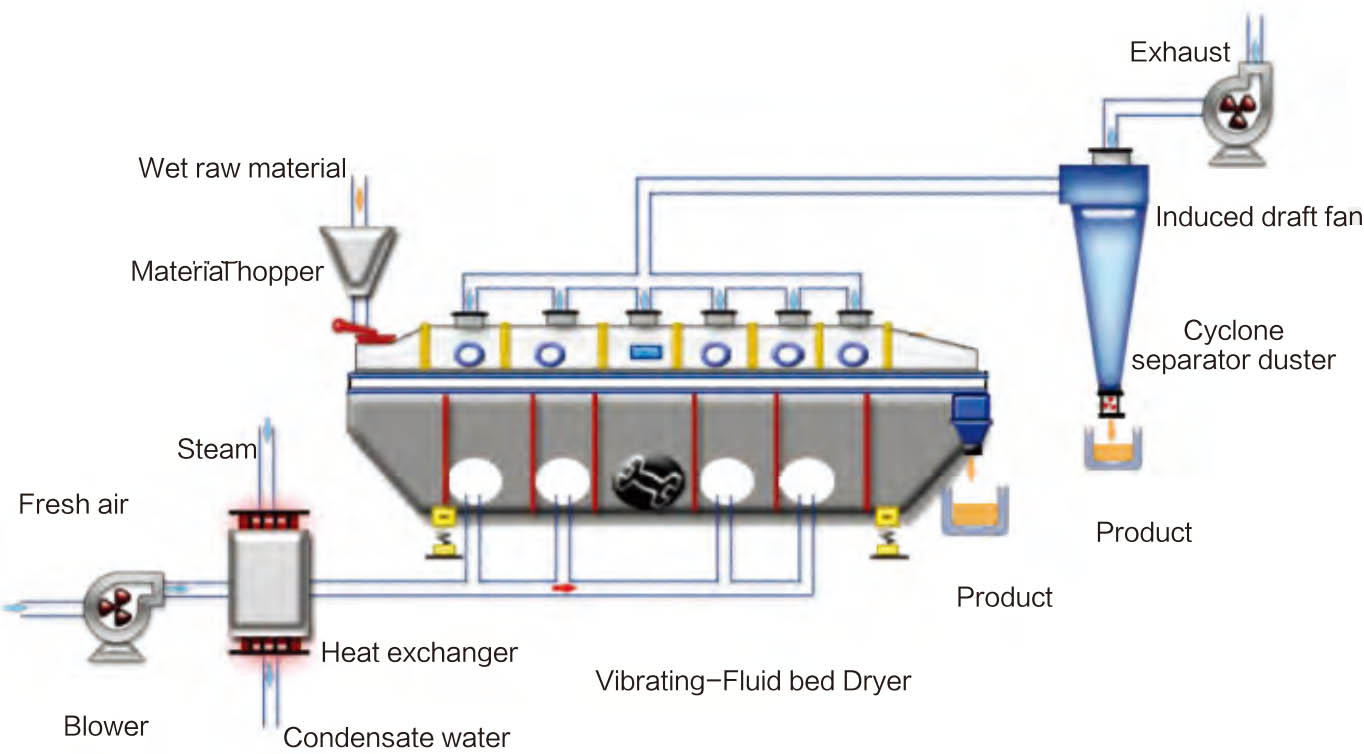

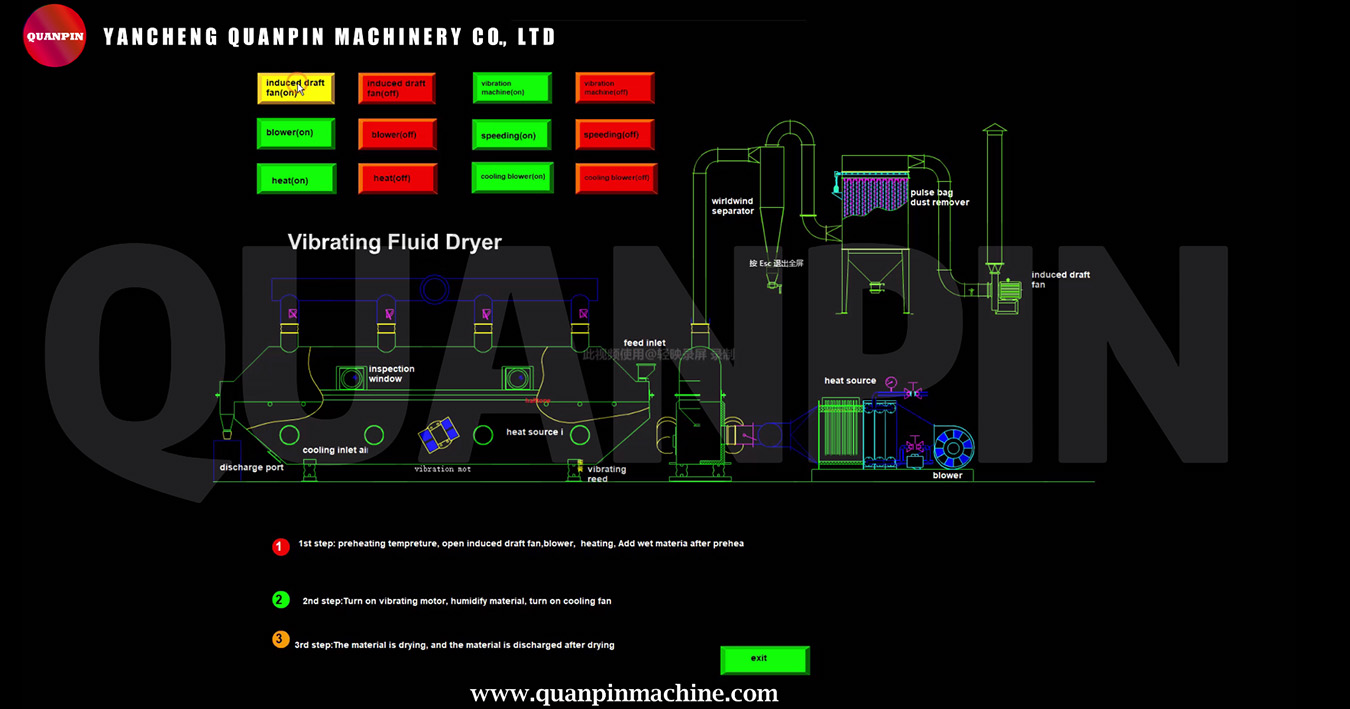

Flow Diagram
Applications
The drier is suitablity in chemical industry, light industry, pharmaceutical, food, plastic, oil, slang, salt, sugarand so on, for drying, cooling, and weting.
